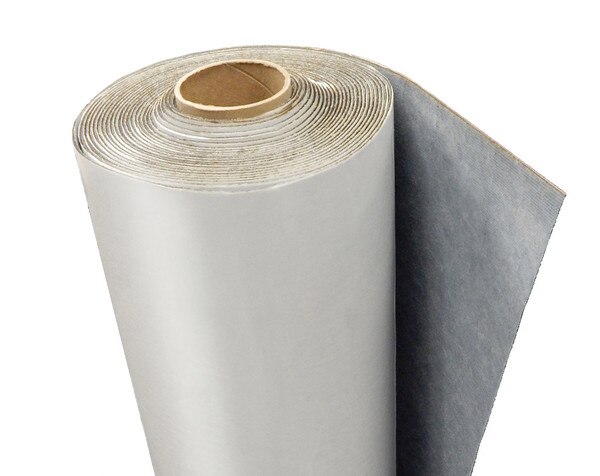

Protecto Wrap Whisper Mat CS - 36" x 40' Roll

Whisper Mat CS is a peel & stick sheet membrane that reduces impact and airborne sound transmissions and isolates “finished” flooring from subfloor cracks. Designed for use with ceramic and natural stone tile where sound absorption is required, specified or desired. Constructed of a cross linked polyolefin foam sheet combined with aggressive rubberized adhesive and a polyester mesh fabric, Whisper Mat CS also has the flexibility and strength to withstand structural movement and concrete shrinkage cracks up to 3/8″ without transferring stress load to finished tile. Additionally, excellent moisture resistant properties make this the most comprehensive underlayment product for ceramic and natural stone available.

• Moisture Resistant
• Anti-Fracture Resistant to 3/8″
• Light Commercial Load Rating
• Approved over Radiant Heated Subfloors
• Uniquely Thin System (110 mil)
• Economical

Applications

• Exterior glue plywood
• Mortar beds
• Concrete
• Cement backer board
• Cement tarrazzo
• Ceramic tile and dimensional stone
• Gypcrete
• Stained concrete
• Radiant heated subfloors
• Metal
• Portland based leveling and patching compounds
• Oriented strand board (OBS)

Sound Reduction Ratings

• 6″ Concrete Floor with no ceiling: IIC 50 STC 55
• 18″ Open Web Truss IIC 55 STC 63
• 8″ Concrete Floor with a gypsum board ceiling assembly: IIC 72 STC 72
• 8″ Concrete Floor with no ceiling: IIC 51 STC 56
• Sound Transmission Reduction: Delta IIC 22
• Class A Flame Spread Rating
