Mfr:Protecto Wrap

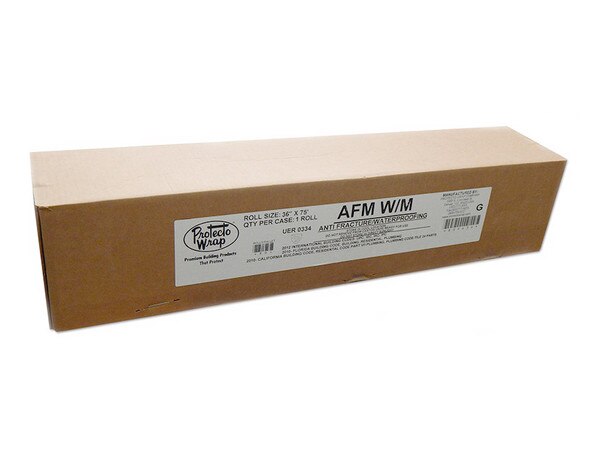

Protecto Wrap Anti-Fracture Waterproof Membrane AFM-WM 36" x 75' Roll


Mfr. Part #: 809636


Anti-Fracture Waterproof Membrane is a 40 mil peel-and-stick crack isolation sheet waterproofing membrane.This is for use beneath thin-set tile and stone applications. AFM keeps the unsightly reflective cracks (from the expansion and contraction of shrinkage cracks) from sur...

View More Details

In Stock

Available: 41

Case Quantity: 1



San Diego






Salt Lake




San Marcos


(*) Minimum Quantity: 1

About This Product


Anti-Fracture Waterproof Membrane is a 40 mil peel-and-stick crack isolation sheet waterproofing membrane.This is for use beneath thin-set tile and stone applications. AFM keeps the unsightly reflective cracks (from the expansion and contraction of shrinkage cracks) from surfacing inexpensive floor finishes. It is suitable as an anti-fracture membrane or for waterproofing fountains such as decks, and kitchen floors.

AFM-WM not only protects your flooring investment as a crack suppression membrane but also incorporates a 2″ overlap guide on one side of the sheet for waterproofing and as a radon barrier. The 2″ flood coated lap allows an adhesive-to-adhesive cohesive bond between subsequent sheets of the membrane. Once the cohesive bond occurs, AFM-WM turns into a monolithic or single-ply membrane across the entire surface being waterproofed.

  • Rated as a shower pan liner, meets ANSI 118.10 Standards for a waterproof membrane
  • Has the flexibility and strength to withstand structural movement and concrete shrinkage cracks up to 3/8" without transferring stress load to finished tile
  • Can be installed with radiant heat floor systems
  • Provides an Extra Heavy Load Rating
  • Anti-microbial coating


  • For interior waterproofing and crack isolation protection under thin set ceramic, porcelain and dimensional stone tile installations
  • All interior wet areas including kitchens, bathrooms, shower pan liners and walls

Approved Substrates

  • Exterior glue plywood Mortar beds
  • Concrete
  • Cement backer board
  • Cement terrazzo
  • Ceramic tile and dimensional stone
  • Gypcrete
  • Stained concrete
  • Radiant heated subfloors
  • Metal
  • Portland based leveling and patching compounds


  • Approximately 212 square feet with 2" overlap per roll

Product Video


Anti-Fracture Waterproofing Membrane Documents


Anti-Fracture Waterproofing Membrane Specifications
