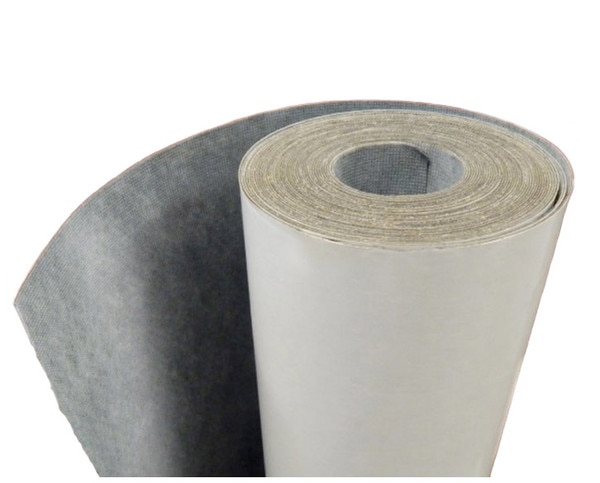

Protecto Wrap Anti-Fracture Membrane AFM #1 36" x 75' Roll

AFM Anti Fracture Membrane is made up of a tough fabric top with an aggressive rubberized adhesive that has the flexibility and strength to withstand structural movement and concrete shrinkage cracks up to 3/8″ without transferring the stress load to the finished tile topping. AFM is designed for thin-set tile applications. Installations requiring more than 3/8″ of thin-set mortar need to be raised with a self-leveling compound or a pre-mortar bed and allowed to cure prior to installation of AFM. Use latex modified thin-set mortar to install tile over AFM.

• Meets or exceeds ANSI 118.12
• Has the flexibility and strength to withstand structural movement and concrete shrinkage cracks up to 3/8" without transferring stress load to finished tile
• Can be installed with radiant heat floor systems
• Provides an extra heavy load rating
• Anti-microbial coating

Applications

For interior applications under thin set ceramic, porcelain, and dimensional stone tile installations

Typical Applications

• Commercial
• Multi-Family
• Healthcare
• Educational
• Residental
• Hospitality
• Municipal
• Government

Approved Substrates

• Exterior glue plywood
• Concrete
• Cement terrazzo
• Gypcrete
• Radiant heated subfloors
• Portland based leveling and patching compounds
• Mortar beds
• Cement backed board
• Ceramic tile & dimensional stone
• Stained concrete
• Metal
• Oriented strand board (OSB)

Coverage

• 36" x 75' = 225 square feet
