Mfr:ITW Polymer Sealants

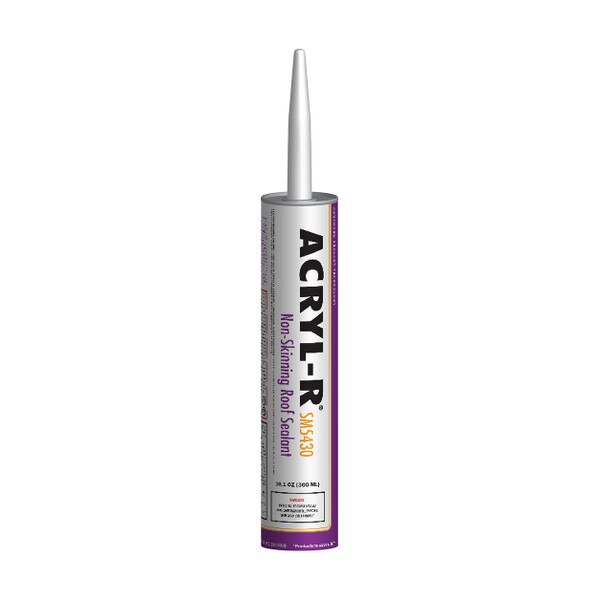

Schnee-Morehead 5430 SSR Sealant 10 Ounce Cartridge - White

(0)(0)

Item #: SM5430.SC*WH

Mfr. Part #: 5430CART WHT

Q&A(0)

Roll Over To Zoom

$5.70

This is a hazardous item and will incur additional shipping charges at checkout.

About This Product

Details

Acryl-R SM5430 Sealant is a high performance, high solids, non-skinning, non-drying standing seam roof (SSR) and insulated panel sealant based on a unique elastomer that provides a non-stringy consistency and excellent resistance to severe environmental conditions of heat, cold and moisture. Specifically formulated for precise application into concealed panel joints for roll forming lines (standing seam roof panels). It has excellent cut-off characteristics and is not stringy or messy to apply. It is also designed for sealing the warm side of concealed exterior polyurethane foam panels to form a vapor barrier seal. It is formulated without asbestos fillers.

Features & Benefits

Excellent adhesion to oily GALVALUME®, GALVALUME PLUS®, ACRYLUME®, ZINCALUME®, Kynar 500®, aluminum, aluminized steel, polyvinyl fluoride and siliconized polyester painted metal, concrete, FRP and glass
Remains permanently soft and tacky
Engineered for cold storage (low temperature) applications
Sealant will easily engage and transfer to male joint
Factory-caulked panels can be erected in the field up to six months after factory caulked

Minimal Shrinkage
No cracking or loss of adhesion at -60°F
Service Temperature Range -60°F to 200°F
Application Temperature Range 10°F to 120°F
Will resist fungal attack and not support mildew growth
Excellent for sealing between dissimilar metals to prevent electrolysis

Applications

SM5430 is designed for factory sealing the female lip of a concealed standing seam roof (SSR) rib, as well as wall panels and polyurethane foam panel joints where a positive seal is required in mechanically fixed joints.
Specifically formulated for precise application into concealed panel joints for roll forming lines
Excellent for factory sealing standing seam roof panels and end laps
Excellent for sealing between dissimilar metals to prevent electrolysis.
May be used in concealed curtainwall applications.

Colors

White

Packaging

(1) Schnee-Morehead 5430 SSR Sealant 10 Ounce Cartridge - White (this item)

Testing Standards

ASTM E1680 Air Infiltration
ASTM E1646, Water Penetration of Exterior
Roof Panel Systems by Uniform Static Air Pressure Difference, passes no water leakage

Documents

SM5430 Drum Documents

Specifications

SM5430 Specifications

Q & A

true

Warning: This product can expose you to Titanium dioxide, which is known to the State of California to cause cancer.
For more information go to www.p65warnings.ca.gov
