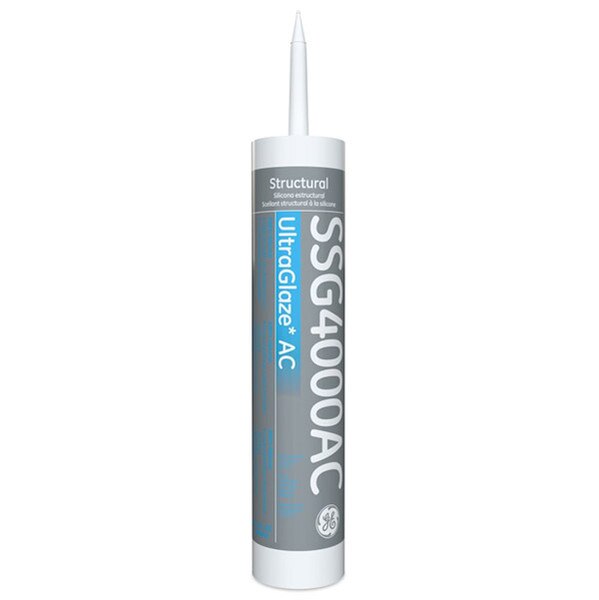

GE UltraGlaze SSG4000AC Structural Sealant 10 Ounce Cartridge
Item #: GE4000AC.SC
An internal error has occurred
Mfr. Part #: -
Roll Over To Zoom
With a 100% silicone-based formula, SSG4000 Accelerated Cure (AC) UltraGlaze sealant forms a strong, flexible cushion between the glass and the frame. Its accelerated cure profile can help meet production demands without compromising strength. SSG4000AC is an excellent choic...
With a 100% silicone-based formula, SSG4000 Accelerated Cure (AC) UltraGlaze sealant forms a strong, flexible cushion between the glass and the frame. Its accelerated cure profile can help meet production demands without compromising strength. SSG4000AC is an excellent choice to consider for in-shop or in-field structural glazing and curtainwall applications.
An excellent solution for both in-shop and in-field structural glazing and curtainwall applications, it is made to withstand severe impact and extreme weather without tearing, rupturing, or degrading, now and well into the future.
Features & Benefits
Exceptional durability, with high-tensile strength and tear resistance
Proven, long-term resistance to extreme temperatures, UV radiation, rain, snow, and wind with negligible change in elasticity
Quickly attains weather-resistant properties
Once cured, remains elastic in temperatures from –55°F (-48°C) to 250°F (121°C)
±25% movement capacity
Low VOC (volatile organic compound)
Primerless adhesion to many substrates and finishes
Extrudes easily from cartridge or container
Accelerated cure builds adhesion rapidly, stabilizing assembled parts to facilitate early handling
Low-sag formula remains in place until fully cured
UltraGlaze SSG4000AC structural glazing adhesive may be an excellent material of choice for use in structural glazing applications such as factory glazing of unitized curtainwall systems or in field constructed stick curtainwall systems.
UltraGlaze SSG4000AC structural glazing adhesive can also be used as a weatherseal product, when movement expected in the joint does not exceed its movement capability (±25%).
UltraGlaze SSG4000AC structural glazing adhesive is tested to AAMA 800 spec and is useful as a bedding material in the fabrication of doors and windows.
UltraGlaze SSG4000AC structural glazing adhesive has been validated in designs as an appropriate candidate for consideration for use in protective glazing applications.
UltraGlaze SSG4000AC structural glazing adhesive is useful in panel stiffener applications.
SSG4000AC UltraGlaze sealant securely bonds without a primer to many substrates and finishes including glass, glass coatings, ceramic frits, paints, and aluminum. Some finishes or substrates may require a primer.
ASTM C920; Type S, Grade NS, Class 25, Use NT, A, G, O
AAMA 802.3 Type 1 and 2
AAMA 803.3 • 805.2 • 808.3
SSG4000 UltraGlaze silicone should not be considered for:
In structural glazing applications unless Momentive Performance Materials has reviewed shop drawings for applicability and has performed adhesion and compatibility tests on project substrates, spacer materials and all accompanying accessories. Review and testing is done on a project-by-project basis. No blanket approval is given by Momentive Performance Materials for structural glazing applications. Structural glazing industry guidelines (ASTM C1401) suggest that drawings and details are to be reviewed by all parties involved in the manufacture of an SSG system and for each building project.
For structural adhesion on bare metals or surfaces subject to corrosion (i.e., mill aluminum, bare steel, etc.)
In designs where the silicone is encapsulated and without access to atmospheric moisture (this material requires atmospheric moisture to cure from paste to rubber).
In exceedingly large structural cavities (see Sealant Application section for additional information).
Under exceedingly hot or cold conditions (see Sealant Application section for additional information).
Underwater or in applications where the product will be in continuous contact with water.
For contact with strong acids or bases.
In food contact applications.
