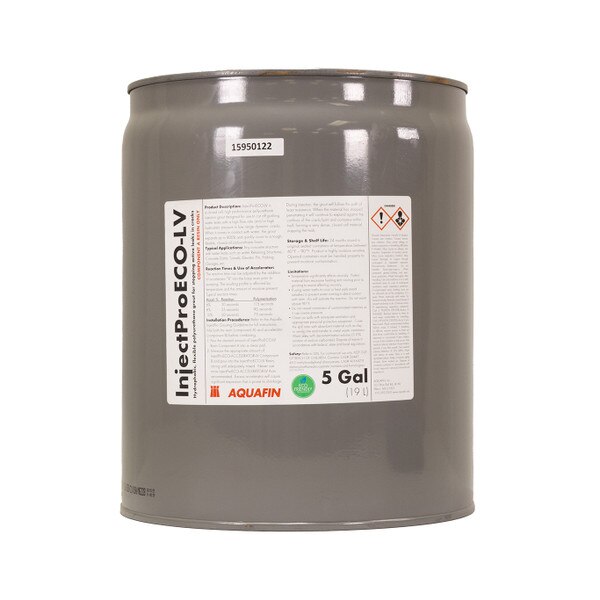

Aquafin InjectProECO-LV 5 Gallon Pail

(0)(0)
Item #: AQINJPROELV.5P*NA

Mfr. Part #: 3IELV-05GP

Q&A(0)

Features and Benefits Aquafin's InjectProECO-LV is a closed cell, high performance polyurethane injection grout designed for use to cut off gushing water leaks with a high flow rate and/or high hydrostatic pressure in low range dynamic cracks. When it comes in contact wi...

View More Details
In Stock

Available: 8

Case Quantity: 1

Location

Available

Anaheim, CA

3

Burbank, CA

2

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

3

San Marcos, CA

0

Better Together

Buy all 3

Subtotal $553.35

About This Product

Details

Features and Benefits

Aquafin's InjectProECO-LV is a closed cell, high performance polyurethane injection grout designed for use to cut off gushing water leaks with a high flow rate and/or high hydrostatic pressure in low range dynamic cracks. When it comes in contact with water, the grout expands up to 800% and quickly cures to a tough, flexible, closed-cell polyurethane foam that is generally unaffected by common corrosive environments and is not subject to shrinkage due to wet/dry cycles.

  • Zero VOCs - meets LEED criteria
  • 100% solids, non-flammable, non-toxic permanent seal
  • Hydrophobic - can be used in wet and dry environments
  • Accelerator and resin stable to -40°F.
  • Pumped as a single component
  • Excellent elongation creates a tight seal in moving cracks
  • Adjustable reaction times
  • Non-hazardous shipping


Application Information

During injection, the grout will follow the path of least resistance. When the material has stopped penetrating it will continue to expand against the confines of the crack/joint and compress within itself, forming a very dense, closed cell material stopping the leak.


Typical Applications

Any concrete structure with water leaks such as:

  • Water Retaining Structures
  • Concrete Dams
  • Tunnels
  • Elevator Pits
  • Parking Garages


Cure Rate

When mixed with water at a 1:1 ratio the typical initial reaction time is 20 seconds, with final reaction at approx. 3 minutes.

Typical Reaction Times

Percent (%) of InjectProECO-ACCELERATOR-UNIStart of ReactionEnd of Reaction
5% 25 sec. 1 min. 52 sec.
7% 22 sec. 1 min. 29 sec.
8% 20 sec. 1 min. 29 sec.
10% 17 sec. 1 min. 11 sec.


Expert Tips

  • Never use more accelerator than recommended. Excess accelerator will cause significant expansion that is prone to shrinkage.
  • Temperature significantly affects viscosity. Protect material from excessive heating and cooling prior to grouting to avoid affecting viscosity.
  • If using water baths to cool or heat pails avoid splashes to prevent water coming in direct contact with resin - this will activate the reaction.
  • Do not warm material or packaging above 90°F (32°C).
  • Do not reseal containers of contaminated materials as it can create pressure.


Mixing

  1. Mix both the resin (Component A) and accelerator (Component B) before combining.
  2. Pour the desired amount of InjectProECO-CombiGrout Resin Component A into a clean pail.
  3. Measure the appropriate amount of InjectProECO-ACCELERATOR-UNI Component B and pour into the InjectProECO-CombiGrout Resin, stirring until adequately mixed.


Packaging

Packaging SizeItem ComponentsCase/Pallet Size
(1) 5 Gallon Pail Aquafin InjectProECO-LV (this item) (36) Pails/pallet

Other Sizes

(1) 50 Gallon Drum (special order only, contact us) Aquafin InjectProECO-LV n/a

Documents

InjectProECO-LV Documents

Specifications

InjectProECO-LV Specifications
