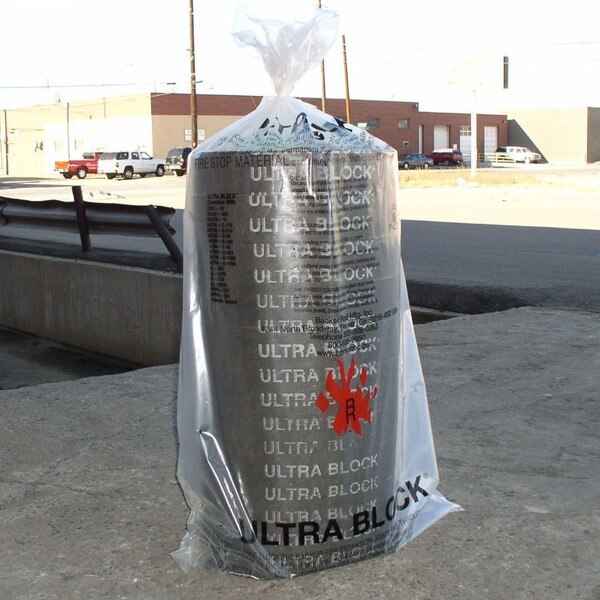

BRM Ultra Block - 1/2" x 6" x 360' per Bag
Mfr. Part #: IEDA01206
Roll Over To Zoom
ULTRA BLOCK is a pre-engineered, patented textile fiberglass with fiberglass matt facing, containing approximately 30% by weight unexpanded vermiculite. ULTRA BLOCK is primarily used in fire rated construction joints.To be an effective fire blocking joint packing system, a p...
View More DetailsAbout This Product
Details

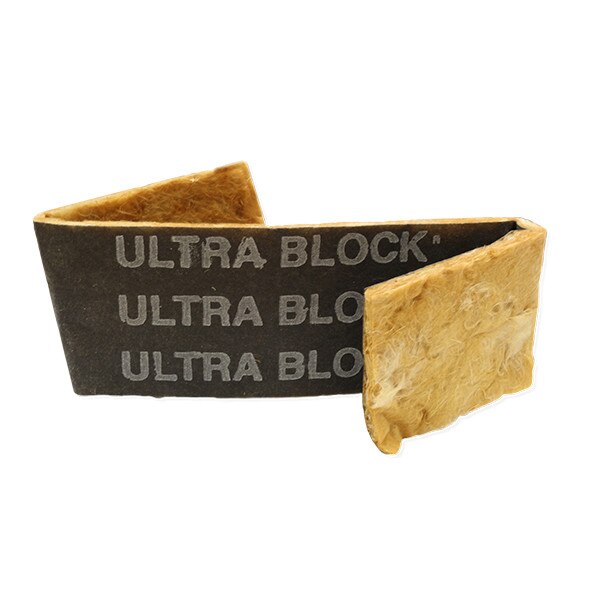

ULTRA BLOCK is a pre-engineered, patented textile fiberglass with fiberglass matt facing, containing approximately 30% by weight unexpanded vermiculite. ULTRA BLOCK is primarily used in fire rated construction joints.
To be an effective fire blocking joint packing system, a product must remain highly resilient and must completely fill the moving joint for a great number of years. In most packed and caulked joints, examination of the resiliency of the forming material is difficult to check, as the material is covered up with sealant. Many joint packing materials, such as mineral wool and ceramic fiber, are not designed to handle joint movement and may fall out or slump in the joint when subjected to continuous joint expansion and contraction. Under fire situations, the fire blocking material must be in the same condition as when it was installed, meaning that the material must completely fill the void in order to block a fire. ULTRA BLOCK has a unique patented, hinged design and composition that remains highly resilient under the most extreme conditions.
Applications
ULTRA BLOCK, when used together with an approved sealant, provides a 2-Hour, 3-Hour, or 4-Hour fire rated joint system as designated by design configuration, which is capable of withstanding ± 50% expansion and contraction. Most sealant manufacturers in the United States have tested one or more of their sealants in a UL classified ULTRA BLOCK system ranging in joint size from 1/2” up to 7”. We ask that you verify your sealant selection complies with our UL system design. Approved sealant manufacturers include:
- Dow Corning
- Momentive Performance Materials
- C R Lawrence
- LymTal International
- Pecora Corporation
- Quaker
- Sika Corporation
- BASF Construction Chemical
- Specified Technologies Inc
- EGS Nelson
- Rectorseal Corporation
Testing Standards
- IBC – International Building Code
- City of Los Angeles Building Code
- ANSI/UL 2079 – UL Standard for Safety Tests for Fire Resistance of Building Joint Systems
- UL 263-92 – UL Standard for Safety Fire Tests of Building Construction and Materials
- UL 1479 – UL Standard for Safety Fire Test of Through Penetration Firestops
- UL 723 – UL Standard for Safety Test for Surface Burning Characteristics of Building Materials
- ASTM E119 – Method for Fire Tests of Building Construction and Materials
- ASTM E814 – Methods for Fire Tests of Through Penetration Fire Stops
- ASTM E84 – Test Method for Surface Burning Characteristics of Building Materials
- ASTM E1399 – Test Method of Cyclic Movement and Measuring the Minimum and Maximum joint Widths of Architectural Joint System
- ASTM C719 – Test Method for Adhesion and Cohesion of Elastomeric Joint Sealants Under Cyclic Movement
- ASTM C920 – Specification for Elastomeric Joint Sealants
- NFPA 251 – Fire Test of Building Construction Materials
- NFPA 255 – Burning Character of Building Materials
