Mfr:EMSEAL Joint Systems

Emseal QuietJoint SHG 6" Joint x 6.56' Stick

(0)(0)
Item #: EMQJSHG-6.EA*SKA

Mfr. Part #: SHG-0600

Q&A(0)

QuietJoint by Sika Emseal is a sound, draft, heat, cold, and dust blocking acoustic partition closure and joint filler for interior, nonmoving joints and gaps. It is a non-mechanical, high-STC (Sound Transmission Class), noninvasively anchored closure that quickly and easily...

View More Details

On Back Order

Available: 0

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

About This Product

Details

QuietJoint by Sika Emseal is a sound, draft, heat, cold, and dust blocking acoustic partition closure and joint filler for interior, nonmoving joints and gaps. It is a non-mechanical, high-STC (Sound Transmission Class), noninvasively anchored closure that quickly and easily mates partitions to windows, mullions, or stud walls. QuietJoint also blocks sound transmission between rooms.

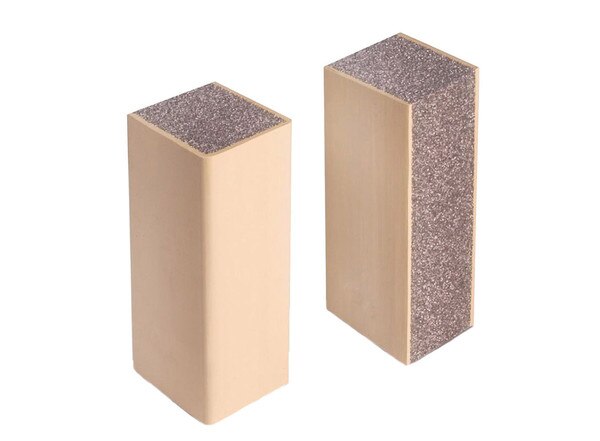

This product is colorized (Color-switching can be used with QuietJoint to coordinate with bands of color in a wall’s color scheme), versatile, and ideally suited as a closure for gaps between the ends of permanent, semi-permanent, or movable partitions, window-wall, curtain-wall, head-of-wall and other conditions. QuietJoint features a mass-loaded fire-resistant foam core coated with commercial-grade silicone. The foam core is a custom-density open-cell foam infused with a fire-resistant, acrylic-based massloading agent.


Features & Benefits

  • Mass-loaded acoustic seal (STC-53, OITC-38, ASTM E-90)
  • Fire-resistant (Smoke and Flame Spread Class A, ASTM E-84-12)
  • Insulates (R-value 2.85/in depth, ASTM C-518-04)
  • Sound attenuating
  • Non-mechanical
  • Non-metallic
  • Rapid installation--new or retrofit
  • Non-invasive anchoring
  • Practical and versatile
  • Easily handles curves
  • Helps control HVAC balance between rooms

Applications

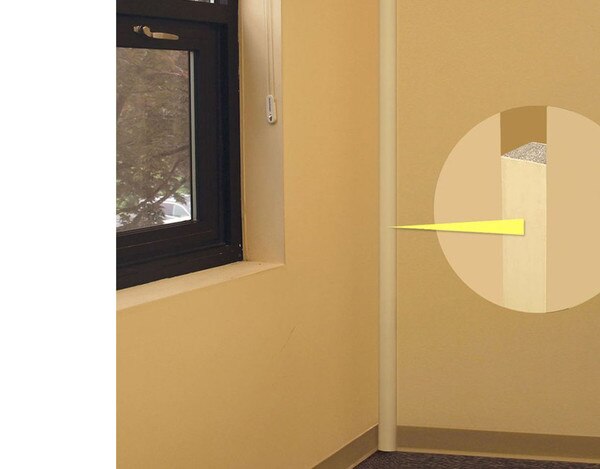

  • End of partition to mullion (SHH 2-sided coating)
  • End of partition to window (SHG 3-sided coating)
  • End of partition to wall (SHH)
  • Head of wall (SHH)
  • To block any flanking path
  • To fill construction-created voids and gaps


Colors

  • Stone
  • Limestone
  • White
  • Tru-White
  • Deck Gray
  • Beige
  • Natural Stone
  • Light Gray
  • Gray
  • Anodized Aluminum
  • Black
  • Aluminum Gray
  • Medium Bronze
  • Classic Bronze
  • Sandstone
  • Adobe Tan
  • Dusty Rose
  • Quarry Red
  • Rustic Brick
  • Red Rock
  • Charcoal
  • Charcoal Gray
  • Colonial White
  • Precast White
  • Precast

Packaging


Limitations

  • Overcompressing QuietJoint can result in backpressure that could exceed the ability of certain substrates to resist this pressure. User is assumed to have tested all applications to ensure suitability for use.
  • Not intended for use in moving joints. Not trafficable. For watertight, moving structural joint gaps contact EMSEAL for product selection.

    Documents

    QuietJoint Documents
