Mfr:3M

3M Fire Barrier Wrap Strips FS-195+ per Roll

(0)(0)
Item #: 3M07115-7.EA*NA

Mfr. Part #: 7000006371

Q&A(0)

3M Fire Barrier Wrap Strips FS-195+ are a convenient, cost-effective firestop for plastic pipe, insulated pipe and cable, blank, floor and floor/ceiling assemblies. This intumescent firestop with aluminum foil exterior blocks flame, heat and toxic by-products of combustion. ...

View More Details
In Stock

Available: 4

Case Quantity: 10

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

4

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

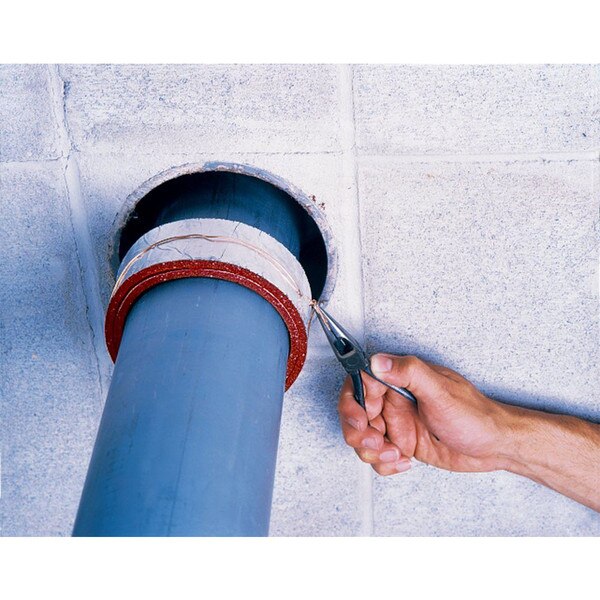

3M Fire Barrier Wrap Strips FS-195+ are a convenient, cost-effective firestop for plastic pipe, insulated pipe and cable, blank, floor and floor/ceiling assemblies. This intumescent firestop with aluminum foil exterior blocks flame, heat and toxic by-products of combustion. Installers simply wrap the strips around the penetration, secure and seal.

  • Material is intumescent for thermal insulation (Intumescent material effectively firestops non-metallic penetrants)
  • Aluminum foil exterior makes for accurate, effective installation
  • Easily installed – simply wrap, secure and seal
  • Re-enterable material saves time and money after installation
  • Firestop tested up to 4 hours in accordance with ASTM E 814 (UL 1479)

Applications

Engineered as a wrappable firestop for applications including blank penetrations, large openings, even plastic and other non-metallic pipe penetration systems. 3M Fire Barrier Wrap Strips FS-195+ are fire-rated up to 4 hours in tested and listed systems and meets ASTM E814 (UL 1479) performance standards. Intumescent material expands when heated to deliver excellent thermal insulation, as well as provide an effective firestop for non-metallic penetrants.

  • Plastic pipe and conduit penetrations up to 10" diameter
  • Metal pipe penetrations
  • Insulated pipe penetrations
  • Blank penetrations
  • Bus ducts
  • Cable trays and bundles
  • In conjunction with 3M Fire Barrier Composite Sheet CS-195+ for large openings
  • Use with 3M Fire Barrier RC-1 Restricting Collar

3M Fire Barrier Wrap Strips FS-195+ can be installed into a wide range of applications because of its convenient wrappable strip construction — the flexible, firestop material comes in strips which can be quickly and easily wrapped around the penetration. Installers simply apply the strip, cut it with common tools, secure it in place with a 3M Fire Barrier RC-1 Restricting Collar, steel tie wire or 3M Composite Sheet CS-195+ and seal it with materials such as 3M Fire Barrier Sealant CP 25WB+ or Moldable Putty. It is designed for excellent weatherability against temperature, and humidity. It is re-enterable to save added time and material costs after installation.

The Science of Better Fire Protection from 3M

Since 1925 when one of our lab assistants invented masking tape, 3M has been applying science to life — developing adhesive products and technologies that help entire industries and individual businesses worldwide. The work that began with a single 3M engineer now spans decades and generations. All of it goes into each of our adhesives, sealants and protective coatings including 3M Fire Barrier Strips FS-195+ — to improve performance, and to help businesses like yours operate faster, better and more efficiently.

See More 3M Fire Protection Product Applications

Documents

3M Fire Barrier Wrap Strips FS-195+ Documents

Specifications

3M Fire Barrier Wrap Strips FS-195+ Specifications
