SpecSeal Firestop Grommet for Cables up to .53 per Pack of 10

EZ-Firestop Grommets make sealing penetrations of individual and small bundles of cables through gypsum board walls a snap. Molded from premium plenum-plastics and incorporating a soft foam inner core, EZ-Firestop Grommets eliminate the need for sleeves, firestop putties & sealants.

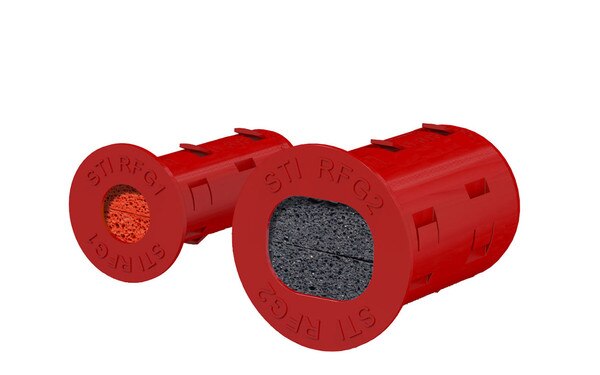

• One or more cables with total O.D. up to 0.27” (7 mm) for RFG1
• One or more cables with total O.D. up to 0.53” (14 mm) for RFG2
• Easy firestop & smoke seal for a small cable penetrations through fire-rated walls
• For use in gypsum board wall (i.e. drywall) construction
• Tested to ASTM E814 (UL1479) and CAN/ULC-S115
• Rated for use in plenums

Applications

• Cables

EZ-Firestop Grommets are designed to permanently seal small cable penetrations through drywall.

Specifications

For small cables penetrating gypsum board/stud wall assemblies, the firestop shall consist of a molded, two-piece grommet having a foam fire and smoke sealing membrane that conforms to the outside diameter of the individual cable. The grommet product shall be capable of locking into place to secure the cable penetration within the wall assembly. The grommet shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.

Test Standards

• ASTM E814 (UL1479)
• CAN/ULC-S115

Specified Divisions

• Division 7 07 84 13 Penetration Firestopping
• Division 26 26 00 00 Electrical
• Division 27 27 00 00 Communications
