  • Aussie Swell Red 940 Waterstop 16.4' per Roll

Mfr:AVM Industries

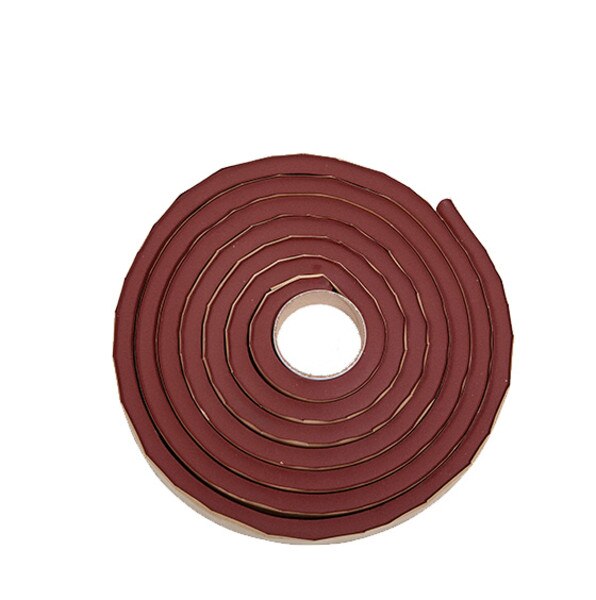

Aussie Swell Red 940 Waterstop 16.4' per Roll

(0)(0)
Item #: AVMSR940.RL*NA

Mfr. Part #: Aussie Swell Red 940

Aussie Swell Red is a hydrophilic strip water stop and that is a formulated blend of sodium bentonite & butyl rubber. Aussie Swell Red is an active water stop which reacts with water to seal construction joints within concrete. The seal resists hydrostatic pressure, stopping...

View More Details

(*) Minimum Quantity: 1

About This Product

Details

Aussie Swell Red is a hydrophilic strip water stop and that is a formulated blend of sodium bentonite & butyl rubber. Aussie Swell Red is an active water stop which reacts with water to seal construction joints within concrete. The seal resists hydrostatic pressure, stopping the passage of water through the joint.

Due to the sodium bentonite content, on contact with water, Aussie Swell Red will swell (expand) within its confinement, self-injecting into localized voids & minor fissures. Aussie Swell Red is an active water stop designed to replace passive PVC/Rubber water bars, without the need for pre-formed intersections, split forming or seam welding.

  • Non-dimensional swell allows complete injection to surrounding voids
  • Conformable – can be applied to a range of irregular substrates
  • Resists in excess of 6 bar (60m) hydrostatic pressure
  • Swells many times more than its dry volume to form impenetrable gel
  • Simple butt jointing on site application
  • Reproducible swell after wet-dry cycle
  • Unaffected by freeze/thaw cycling

Applications

Aussie Swell Red can be applied to concrete, steel or pipe (PVC). Coil ends are butt-jointed (not overlapped) to form a continuous waterstop. Use in concrete joints, pipe penetrations, wall-to-floor joints, irregular surfaces, etc.

Documents

Aussie Swell Red 940 Documents
