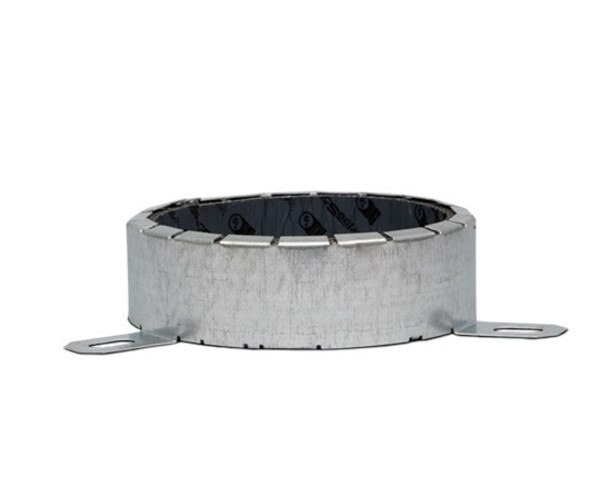

SpecSeal LCC FireStop Collar - 4"

SpecSeal LCC Firestop Collars are factory-manufactured firestop devices sized to plastic pipes of up to 4 in. Trade Size. LCC Collars consist of a restraining collar with a factory applied intumescent ensuring the correct amount of material is applied every time. Simplify the process of firestopping combustible piping by taking the guess work out of estimation with SpecSeal LCC Firestop Collars.

• Rapid expansion - closes off burning pipes quickly
• Small profile - use it in all the tight spots
• Flexible & durable - no loose flakes (eye hazards)
• Water resistant - no water soluble or hygroscopic ingredients
• Economical - lower installed cost
• High volume char - expands up to 60 times

Applications

• Plastic Pipe

SpecSeal LCC Collars are used to protect a variety of plastic pipes including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS and ABS Foam Core (ccABS) in both vented (DWV) and closed (electrical conduit and water supply) installations. SpecSeal LCC Collars are suitable for use in all common constructions including concrete floors, concrete over steel deck, concrete walls, concrete block walls, gypsum board walls, as well as wood f loor assemblies.

Specifications

The firestop system shall be a factory assembled firestop collar utilizing a molded, flexible intumescent insert. The intumescent insert shall provide a minimum of 30x free expansion and shall contain no water soluble expansion ingredients. The specified material shall be approved for a wide range of applications including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS and ABS Foam Core (ccABS) when used by itself or in combination with other products from the same manufacturer. The collar shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.

Test Standards

• ASTM E814 (UL1479)
• CAN/ULC-S115

Specified Divisions

• Division 7, 07 84 13, Penetration Firestopping
• Division 22, 22 00 00, Plumbing
