  • SpecSeal Intumescent Fire Stop Collar for Plastic Pipe - 4"

Mfr:STI Firestop

SpecSeal Intumescent Fire Stop Collar for Plastic Pipe - 4"

(0)(0)
Item #: SSC400.EA*NA

Mfr. Part #: SSC400

Q&A(0)

The SpecSeal Series SSC Collar is a factory-manufactured device designed to protect plastic pipes penetrating fire-rated walls and floors. Utilizing a heavy gauge galvanized metal collar to house a molded intumescent insert, the SpecSeal Series SSC Firestop Collar is specifi...

View More Details
On Back Order

Available: 0

Case Quantity: 6

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

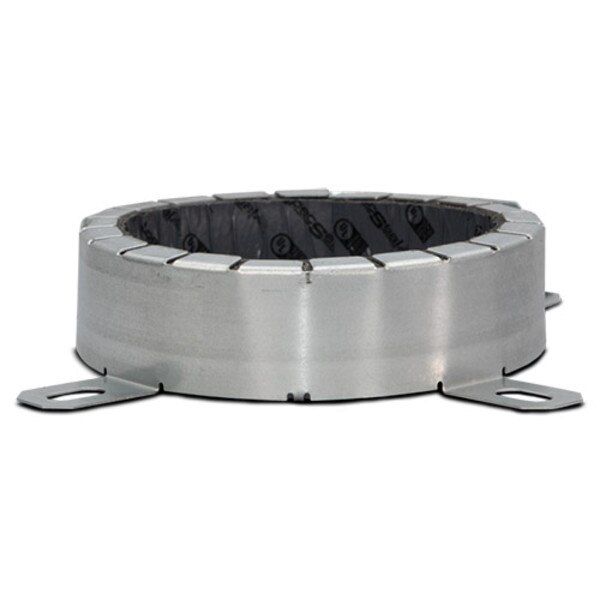

The SpecSeal Series SSC Collar is a factory-manufactured device designed to protect plastic pipes penetrating fire-rated walls and floors. Utilizing a heavy gauge galvanized metal collar to house a molded intumescent insert, the SpecSeal Series SSC Firestop Collar is specifically sized to fit 1-1/2 in (38 mm), 2 in (51 mm), 3 in (76 mm), and 4 in (102 mm) trade sized pipes. When exposed to temperatures in excess of 320°F (160°C), the SpecSeal Series SSC Collar’s molded insert begins to expand (intumesce) rapidly to form a dense, highly insulative char. Its free expansion ranges from 32x to 64x original (pre-expanded) volume. Expansion continues up to 1,000°F (538°C).

  • Rapid expansion - closes off burning pipes quickly
  • Small profile - use it in all the tight spots
  • Flexible & durable - no loose flakes (eye hazards)
  • Water resistant - no water soluble or hygroscopic ingredients
  • Economical - lower installed cost
  • High volume char - expands up to 60 times

Applications

  • Plastic Pipe

SpecSeal Series SSC Collars are used to protect a variety of plastic pipes including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS, ABS Foam Core (ccABS) and XFR 15-50 PVC in both vented (DWV) and closed (electrical conduit and water supply) installations. SpecSeal Series SCC Collars are suitable for use in all common constructions including concrete floors, concrete over steel deck, concrete walls, concrete block walls, gypsum board walls, as well as wood floor assemblies.

Specifications

The firestop system shall be a factory assembled firestop collar utilizing a molded, flexible intumescent insert. The intumescent insert shall provide a minimum of 30x free expansion and shall contain no water soluble expansion ingredients. The specified material shall be approved for a wide range of applications including PVC, PVC Foam Core (ccPVC), CPVC, RNC, PP, FRPP, FRP, HDPE, PE, PVDF, ABS, ABS Foam Core (ccABS) and XFR 15-50 PVC when used by itself or in combination with other products from the same manufacturer. The collar shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115 at 50 PA (0.20 in of water).

Test Standards

  • ASTM E814 (UL1479)
  • CAN/ULC-S115

Specified Divisions

  • Division 7, 07 84 13, Penetration Firestopping
  • Division 22, 22 00 00, Plumbing

Documents

SSC Intumescent Firestop Collars Documents

Specifications

SSC Intumescent Firestop Collars Specifications
