  • Euclid NS Grout 50 Pound Bag

Mfr:Euclid Chemical

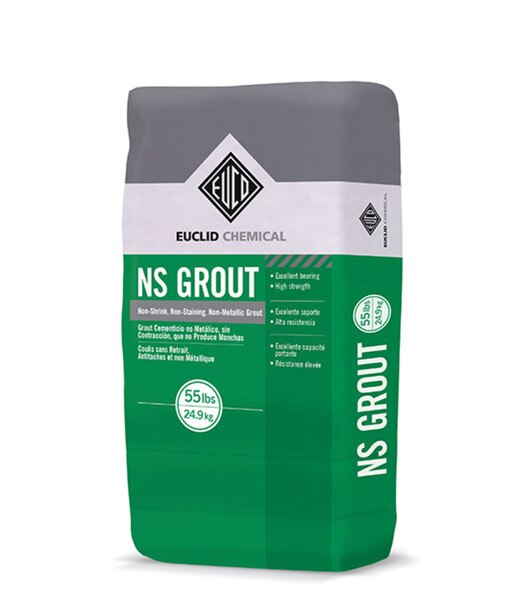

Euclid NS Grout 50 Pound Bag

(0)(0)
Item #: EUNSGROUT.50B*NA

Mfr. Part #: 088 50

Q&A(0)

Roll Over To Zoom

$30.00

NS GROUT is designed for critical use where high strength, non-staining characteristics and positive expansion are required. NS GROUT contains only natural aggregate and an expansive cementitious binder. It is extremely flowable. When cured, it appears similar to concrete in...

View More Details

On Back Order

Available: 0

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

NS GROUT is designed for critical use where high strength, non-staining characteristics and positive expansion are required. NS GROUT contains only natural aggregate and an expansive cementitious binder. It is extremely flowable. When cured, it appears similar to concrete in appearance.

Features & Benefits

  • Non-staining natural aggregate for better appearance
  • Excellent bearing
  • Compatible with galvanic anodes (fluid consistency)
  • Appearance of plain concrete
  • Does not contain any added chloride ions
  • Outstanding strength

Applications

  • Machine bases of all types
  • Column baseplates
  • Pumps and fans
  • Compressors & motors
  • Generators
  • Anchor bolts


Packaging

  • Euclid NS GROUT 50 Pound Bag (this item)

Testing Standards

  • CRD-C 621, Corps of Engineers Specification for Non-Shrink Grout
  • ASTM C1107, “Standard Specification for Packaged Dry, Hydraulic-Cement Grout (Non-Shrink)”
  • Canadian MTQ

Limitations

  • Store materials in a dry place.
  • Do not add sufficient water to promote bleeding of the grout.
  • Use only potable water for mixing, and do not add admixtures or fluidifiers.
  • Do not use this product at a flow cone rate of less than 20 seconds if checking flow rates on the job site (see CRD-C 611 or ASTM C939 for flow cone method).
  • The application temperature range of NS GROUT is 45 to 85 °F (7.2 to 29 °C).
  • Rate of strength gain is significantly affected at temperature extremes.
  • Do not use material at temperatures that may cause premature freezing
  • Keep the grout from freezing until a minimum strength of 4000 psi (28 MPa) is reached.
  • When necessary, follow the recommendations in ACI 305R “Guide to Hot Weather Concreting” or ACI 306R “Guide to Cold Weather Concreting”.
  • For dry pack applications, mechanically mix NS GROUT at a minimum water content of 0.5 gal per 50 lb bag (1.9L/22.7 kg) or 0.55 gal per 55 lb bag (2.1 L/25 kg).
  • Add pea gravel when placing NS GROUT at a depth greater than 5” (12.7 cm).
  • Proper curing is required.
  • In all cases, consult the Safety Data Sheet before use
