Mfr:EMSEAL Joint Systems

Emseal DSM 2" Joint x 6.56' Stick

(0)(0)
Item #: EMDSM-2.EA*SKA

Mfr. Part #: DSM-0200

Q&A(0)

A watertight expansion joint, the DSM System is for horizontal-plane deck applications. Traffic durable, joint-face adhered and pre-compressed, DSM System is a primary seal for deck expansion joints. DSM’s toughness and resilience come from its microsphere-modified-acrylic i...

View More Details

On Back Order

Available: 0

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

Better Together

Buy all 4

  • This Item
    This Item
    $753.16
    Emseal DSM 2" Joint x 6.56' Stick
  • $5.55 $6.31 Save $0.76 (12%)
    Sika Sikaflex 1A Polyurethane Elastomeric Joint Sealant and Adhesive - 10 Ounce Cartridge
  • $18.93
    Sikaflex 2C EZ Mix Color Paks
  • $14.08 $15.75 Save $1.67 (10%)
    GE SCS2000 Silpruf Silicone Sealant per 20 Ounce Sausage
Subtotal $791.72

About This Product

Details

A watertight expansion joint, the DSM System is for horizontal-plane deck applications. Traffic durable, joint-face adhered and pre-compressed, DSM System is a primary seal for deck expansion joints. DSM’s toughness and resilience come from its microsphere-modified-acrylic impregnation and tensionless highway-grade silicone bellows coating.

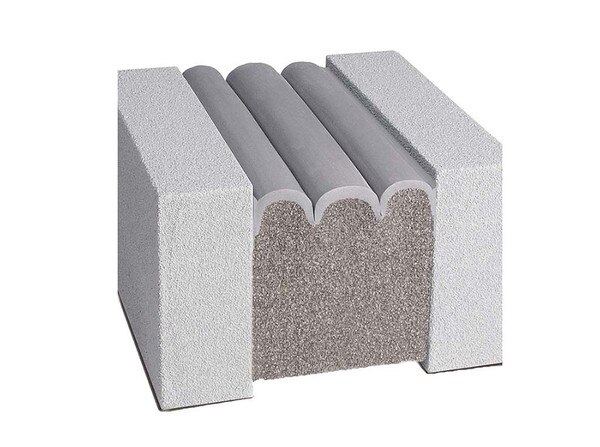

The system is comprised of precompressed, silicone or Silyl Terminated Polyether (STPE) impregnated-foam hybrid installed into field-applied epoxy adhesive on the joint faces with the silicone bellows locked to the joint faces with a silicone or STPE sealant band.

The DSM System features an innovation in sealant technology in the form of an acrylic adhesive infused into the cellular foam base material. This new chemistry incorporates a hydrophobic microsphere component never before available in a sealant formulation.

The material features sealing performance significantly greater than any acrylic impregnated predecessor. In addition, it is odorless, clean handling, UV stable, non-staining, and features low temperature flexibility not previously available in asphalt, wax, or isobutylene-based predecessors.

The result is extension of the usability of the product to applications where asphalt and wax-based predecessors did not work well under conditions of thermal shock (rapid opening and closing of joints during large temperature swings). These applications include joint-face adhered installations on top decks as well as intermediate decks.

Suitability is further extended to horizontal-plane joint applications in colder geographical regions to which asphalt and wax-based predecessors have not previously been recommended.


Features & Benefits

  • Up to 100% Total Movement (+50% and -50% of nominal supplied size)
  • Watertight
  • UV resistant
  • Non-invasive anchoring
  • ADA Compliant
  • Low-temperature flexible, high-temperature stable
  • Tensionless bond-line and low stress silicone bellows
  • Traffic durable
  • Rapid installation–new or retrofit
  • Staged installation preserves traffic flow
  • Joint-face adhered
  • Non-staining
  • Conforms to joint edge irregularities
  • Size switching accommodates joint gap variations

Applications

  • Parking decks/car parks
  • Stadiums
  • Sidewalks
  • Decks
  • Mall bridge connectors
  • Ice-floors
  • Positive-side, below-grade foundation/tunnel wall joints.
  • Stair towers
  • Arenas
  • Perimeter joints
  • Roadways
  • For concrete substrates
  • For metal substrates where demolition and removal of existing embedded metal angles is not feasible or affordable.
  • Lasting replacement of tee-to-tee caulk joints in precast-concrete parking decks and stadiums.

Colors

  • Black
  • Emseal Dow
  • Emseal Sika
  • Sika WS 295 Charcoal
  • Sika WS 295 Light Gray

Packaging


Product Video

Documents

DSM System Documents

Specifications

DSM System Specifications
