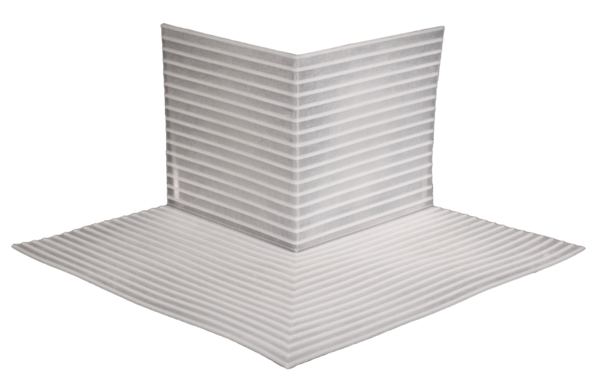

Proglaze ETA 3D Molded Corner - Outside

Proglaze ETA 3-D Molded Corner Connections are engineered from 40 Durometer Dense Translucent Silicone. It is used for making connections to our ExoAir Air Barrier Membrane systems with Spectrem 1 Silicone Sealant. The 3-D molded corners have been designed in such a way so that they may be used to overlap one another or used in conjunction with other Proglaze ETA components to accommodate complex transitions.

• Ribs on both surfaces allow the profile to be rotated in any position to prevent compressing the silicone sealant to a thin film at the bond surface. The material is easily trimmed to fit around projections, while allowing easy lap joints with Proglaze ETA Connections. The 40-durometer translucent silicone material allows for visual inspection of the sealant application, while the ribs prevent the silicone sealant from being compressed to a thin film
• Extrusions and molded corners is acceptable

Application

• Proglaze ETA 3-D Molded Corner Connections are designed to facilitate transitions when construction sequencing has the surrounding façade being installed prior to the wall or window system.
• ETA is compatible with and recommended for use with all Tremco ExoAir Air Barrier products
• Allows complex connections to the wall or window system, which may be recessed or set proud from the plane of the weather barrier surface
• Field fabrications of saddle-flashings
• Transitions the weather barrier across seismic drift joints at the heads of punched openings
• Ability to create a flexible sill pan
