Mfr:3M

3M Fire Barrier Cast-In Devices for Plastic Pipes - 2"

(0)(0)
Item #: 3M16536-8.EA*NA

Mfr. Part #: 7100138821

$12.50

3M Fire Barrier Cast-In Devices for Plastic Pipes are designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, and are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking,...

View More Details

In Stock

Available: 96

Case Quantity: 12

Location

Available

San Diego

0

Anaheim

0

Denver

0

Salt Lake

0

Ontario

96

San Marcos

0

(*) Minimum Quantity: 1

About This Product

Details

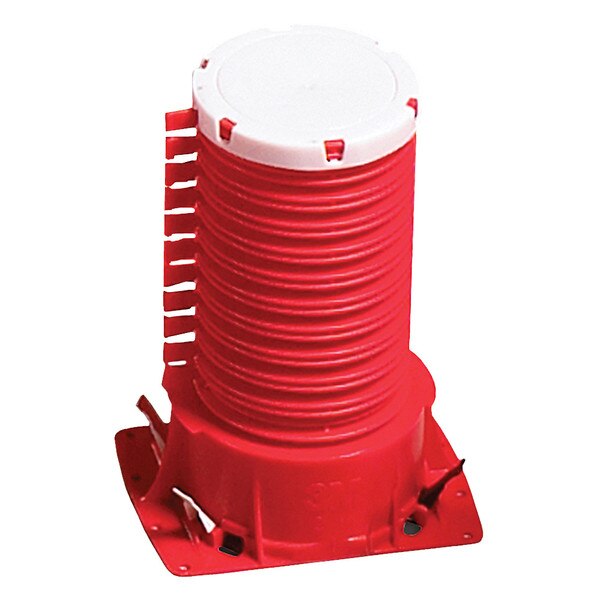

3M Fire Barrier Cast-In Devices for Plastic Pipes are designed to provide one-step firestopping for penetrations through fire-rated concrete floor assemblies, and are a proven alternative to core drilling holes. Installers simply attach the devices directly to floor decking, pour concrete around them and route penetrants after the concrete cures. Heights are adjustable in half-inch (13 mm) increments.

  • Eliminates time and expense of core drilling holes in concrete
  • Designed specifically for plastic pipes and other non-metallic through penetrants
  • Tear strips allow installers to easily adjust height for various concrete thicknesses
  • Installs securely by attaching directly to forms and floor decking
  • Rugged one-piece design withstands impact during everyday construction
  • Intumescent devices are firestop tested for up to 3 hours in accordance with ASTM E 814 (UL 1479)

Simply a Better Way to Firestop

Firestopping through concrete used to mean three things: pouring the concrete, core drilling holes, and firestopping later. 3M's Fire Barrier Cast-In Devices for Plastic Pipes eliminate the time and expense of firestopping non-metallic penetrants using extra materials such as pipe devices, intumescent strips, and caulk. This allows for a more secure, permanent firestop installation before concrete is poured.

A series of built-in tear strips makes for fast, easy height adjustment in ½ inch increments: using only a pliers, installers can quickly adjust the height of the device from its maximum 8 inches (203.2 mm) to as low as 2-1/2 inches (57.2 mm). The device secures easily to floor decking, and its one-piece design withstands the everyday impact or wear of the construction site. Its white cap, easily visible after the pour, signifies it as a pass-through device for non-metallic penetrants.

Applications

  • Firestopping of plastic pipes — ccPVC, PVC, ENT, CPVC, FRPP, PVDF, ccABS, ABS, rigid non-metallic, PEX
  • For concrete thicknesses from 2-1/2 inches (203.2 mm) to 8 inches (57.2 mm) or higher in conjunction with 3M Fire Barrier Cast-In Devices Height Adaptor
  • In conjunction with 3M Fire Barrier Cast-In Device Metal Deck Adaptor for attaching to fluted decks

Fully Tested and Approved

3M's intumescent Fire Barrier Cast-In Devices for Plastic Pipes are firestop tested up to 3 hours in accordance with ASTM E 814 (UL 1479). They are UL Classified for 2- and 3-hour fire (F) rating, and 1- and 3-hour temperature (T) rating. They also meet UL Water Leakage Test, W Rating - Class 1 requirements for systems tested and listed in accordance with ANSI/UL 1479 (see system details).

Documents

3M Fire Barrier 2" Cast-In Device for Plastic Pipes Documents
