Mfr:EMSEAL Joint Systems

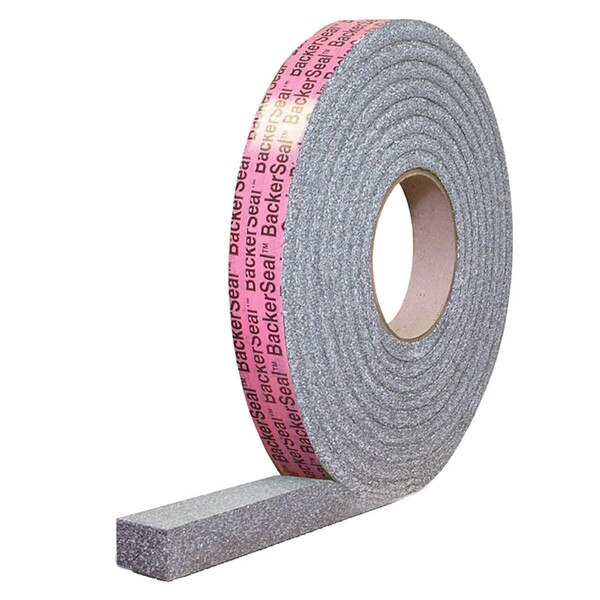

Emseal Backerseal 3-1/2" x 6.56' Stick

(0)(0)
Item #: EMBS-312.EA*NA

Mfr. Part #: BKS-0350

Q&A(0)

A joint sealant for building walls and wall systems, Backerseal is an economical, precompressed, secondary joint sealant to field-applied caulking. Backerseal is a polyurethane foam infused with a hydrophobic-acrylic impregnation technology.Unlike ‘double caulk and backer ro...

View More Details
On Back Order

Available: 0

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

About This Product

Details

A joint sealant for building walls and wall systems, Backerseal is an economical, precompressed, secondary joint sealant to field-applied caulking. Backerseal is a polyurethane foam infused with a hydrophobic-acrylic impregnation technology.

Unlike ‘double caulk and backer rod’, Backerseal behind field-applied liquid sealants provides true “belt and suspenders” sealing–two systems working on different principles to perform the same function. ‘Double caulk and backer rod’ is very difficult to install to achieve the geometry necessary to function in moving joints. In addition, the same forces (tensile stresses at the bondline and within the cured sealant) that will cause the outer installation to fail, will also likely cause the inner installation to fail as well. Backerseal works in compression providing a practical-to-install, fully functional secondary joint sealant using different performance principles than the primary, liquid sealant. Additionally Backerseal provides insulation and sound attenuation value as well as the ability to resist the effects of air-pressure differentials.


Features & Benefits

  • Provides watertight secondary seal
  • Provides R-value at joints
  • Resists air pressure differentials/ABAA compliant
  • Remains firmly in compression against substrates
  • Contributes to LEED
  • Odorless
  • Sound Attenuating
  • Clean handling
  • Non-staining
  • UV stable
  • Low temperature flexible
  • High-temperature stable

Applications

As a secondary sealant behind:

  • Conventional backer-rod and liquid sealants
  • Behind directly-applied liquid sealant

Ideally suited to:

  • Panelized wall systems
  • Curtain wall systems
  • Window perimeters
  • Precast panels
  • Concrete
  • Brick
  • Stone
  • Metal panels, etc.

Colors

  • Gray

Packaging


Certifications

  • Water penetration: ASTM E-331
  • Wind Loading: ASTM E330
  • Air permeability: ASTM E283-04
  • STC Rating: ASTM E90-09
  • OITC Rating: ASTM E90-09
  • R-Value: ASTM C518-04
  • Temperature Stability, Bleeding, Staining & Recovery

Limitations

  • Backerseal will not adhere to joints that are dirty or dust-covered or to surfaces coated with oils or release agents.
  • Backerseal is not resistant to sustained contact with petroleum solvents, oils, selected waxes, active chlorine, heavy oxidized acids or strong lyes.
  • Backerseal is designed for use in vertical surfaces such as walls and facades. It is not intended for use in the horizontal plane such as floors or decks.

    Documents

    Backerseal Documents

    Specifications

    Backerseal Specifications
