Mfr:3M

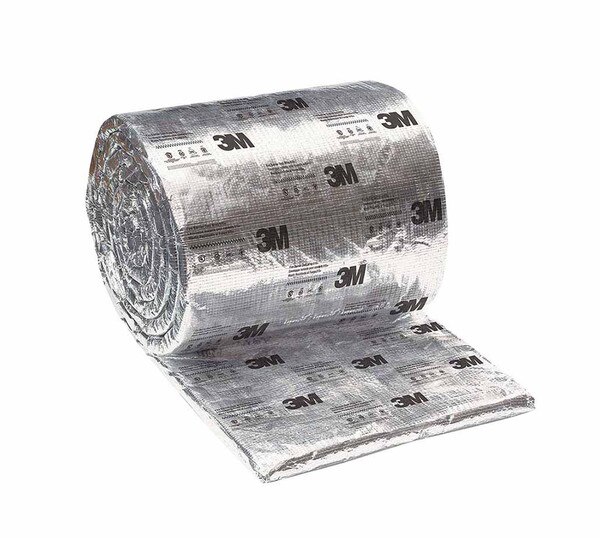

3M Fire Barrier Duct Wrap 615+ - 2'x 25' per Roll

(0)(0)
Item #: 3M54905-2.RL*NA

Mfr. Part #: 7000059419

Q&A(0)

3M's Fire Barrier Duct Wrap 615+ is a fire-rated duct wrap consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Because the blanket is adhered to the foil scrim it will resist wrapping and slumping. This non-asbestos wrap installs easily due to...

View More Details

In Stock

Available: 6

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

6

San Diego, CA

0

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

3M's Fire Barrier Duct Wrap 615+ is a fire-rated duct wrap consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. Because the blanket is adhered to the foil scrim it will resist wrapping and slumping. This non-asbestos wrap installs easily due to its high flexibility, low weight and thin profile — making it an ideal choice for duct enclosure systems. It is a proven alternative to 1- and 2-hour fire resistant shaft enclosures for grease ducts. 3M Fire Barrier Duct Wrap 615+ performs in temperatures up to 2192°F/1200°C.

  • Proven alternative to 1- and 2-hour fire resistant rated shaft enclosures for grease ducts
  • Lightweight and thin, for ease of installation and space saving, while allowing custom installation applications with multiple layers where needed
  • Butted inner layer in 2-layer grease duct applications
  • Zero clearance to combustible throughout the entire enclosure system

Thin, lightweight and flexible, 3M Fire Barrier Duct Wrap 615+ provides excellent insulating capabilities and offers a space-saving alternative to traditional bulky fire protection methods obtained through a gypsum wall shaft or enclosure. This wrap is commonly used in commercial kitchen grease ducts, as well as ventilation ducts.

Applications

  • Fire resistive enclosure for commercial kitchen grease ducts
  • Stair pressurization ducts
  • Life safety air and ventilation ducts

3M's Fire Barrier Duct Wrap 615+ is the only fire-rated duct wrap product you'll ever need to help protect both grease ducts and air ducts while passing the necessary fire tests to achieve up to 2-hour fire-resistance requirements. It is third party certified to ASTM E2336 (grease duct test standard) and ISO 6944 (air duct test standard). It is tested and listed with UL and Intertek, meets IBC, IMC, UMN, NFPA and other key life safety codes. It is listed by California State Fire Marshall (listing No. 2440-0941:5555).

Documents

3M Fire Barrier Duct Wrap 615+ Documents

Specifications

3M Fire Barrier Duct Wrap 615+ Specifications
