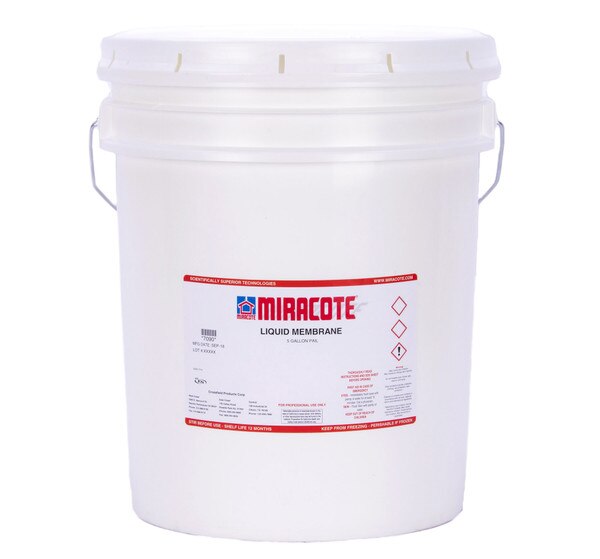

Miracote Liquid Membrane 5 Gallon Pail

Name: Miracote Liquid Membrane 5 Gallon Pail
SKU: MCLIQMEMBRANE.5P
Price: 229.62 USD
Availability: InStock

(0)(0)

Item #: MCLIQMEMBRANE.5P

Mfr. Part #: 7090

Q&A(0)

Roll Over To Zoom

$229.62

MiraFlex Liquid Membrane is a single-component, copolymer emulsion waterproofing membrane with exceptional elongation properties and versatility in a wide range of waterproofing applications. These include pedestrian traffic systems, under tile flooring, sandwic...

View More Details

Tech Data SheetSafety Data Sheet

Better Together

Buy all 2

^Subtotal$268.16

About This Product

Details

MiraFlex Liquid Membrane is a single-component, copolymer emulsion waterproofing membrane with
exceptional elongation properties and versatility in a wide range of waterproofing applications. These include
pedestrian traffic systems, under tile flooring, sandwich slab construction, and under several types of MiraFlex
waterproofing systems. For detailing and treatment of cracks and construction joints, MiraFlex Liquid Membrane can be applied over MiraFlex Seam Tape or embedded with Miracote Poly Fabric, or Poly Fabric Ultra for reinforcement and enhanced dimensional stability.

Features & Benefits

Forms a monolithic, tightly adhering watertight membrane.	Excellent viscosity for both horizontal and vertical surfaces.
Permanent high flexibility – does not age harden.	Provides positive side waterproofing.
Unlike sheet membranes, easily applied over irregular shapes.	Does not contain organic solvents.
Quick drying – dry to touch in 1-2 hours, fully dry in 12 hours.	Crack isolation – reduces potential for reflective cracking.
Compatible with cementitious thin-set mortars.	Green technology – environmentally friendly, LEED-compliant.
Odorless technology

Applications

Waterproofing membrane layer under composition floors.	Under tile, including ceramic, glass, marble, quarry, etc.
Mechanical equipment and utility room flooring.	Waterproofing for computer/data center raised access flooring.
Below grade and split slab waterproofing applications.	Secondary containment, elevator pits.
Water and wastewater facility structures	Crack isolation/waterproofing under Miracote flooring systems.
Waterproofing layer for MiraFlex Decking Systems.

Coverage and Cure Time

Coverage Rate	Wet Mils	Dry Mils
64 sq. ft./gal	25 mils	12.5 mils
50 sq. ft./gal (when applied over Miracote Poly Fabric)	32 mils	16 mils

Cure Time	12 hours
Dry To Touch	1-2 hours

Packaging

Size	Packaging Size	Item
5 gallons	Pail	Miracote Liquid Membrane (this item)

Colors

Black

Applicable Standards

ASTM D638	ASTM G21
ASTM C794	ASTM E96
ASTM E836	ASTM D751
40 CFR 60, Appendix A-7, Method 24

Limitations

Always install a minimum 4’ by 4’ test area site mock-up for approval of acceptable color, texture, finish, adhesion, and any other critical requirement acceptable to the owner prior to proceeding with the installation.	Always protect materials from excessive heat and cold, and pre condition to room temperature with a minimum 60°F as required.
Regularly check wet film thickness with mil gauge and monitor consumption to ensure correct application rates are obtained.	The proper application of this product is the sole responsibility of the end user. Job site visits by Miracote representatives are only for observing and making recommendations, and do not assume any liability for supervision, application, or quality control.
Measure surface and ambient temperatures to ensure the material is only applied when both temperatures range between 55°F (12.8°C) and 90°F (32.2°C) during mixing and time of application.	Allow to cure for three days prior to full water immersion service.
Do not subject cured MiraFlex Liquid Membrane to UV exposure for more than 24 hours. For protection apply one or two finish coats of Miracote MPC. Consult a local Miracote local sales representative or technical service for other alternative protective measures.

Warranty

NO WARRANTY SHALL BE EFFECTIVE UNTIL THE TERMS AND CONDITIONS OF SALE SET FORTH IN CROSSFIELD PRODUCTS CORP. INVOICES ARE MET. Crossfield Products Corp. warrants the purchaser of its products that such products are free from manufacturing defects. Crossfield does not warrant or guarantee the workmanship performed by any person or firm installing its products. Crossfield’s obligation under this warranty is limited solely to the original purchaser and solely to the remedy of replacement in kind of any product which Crossfield sold which may prove defective in manufacture within one year from date of installation, provided said product was stored correctly and installed within the product’s shelf life, by the original purchaser and which by Crossfield ‘s examination shall disclose to Crossfield’s satisfaction to be thus defective. IN NO EVENT, SHALL CROSSFIELD PRODUCTS CORP. BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES. THIS WARRANTY IS EXPRESSLY GIVEN IN LIEU OF ALL OTHER WARRANTIES EXPRESSED OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE AND ALL OTHER OBLIGATIONS OR LIABILITIES ON CROSSFIELD’S PART, AND WE NEITHER ASSUME NOR AUTHORIZE ANY PERSON OR PERSONS TO ASSUME FOR US ANY OTHER LIABILITY IN CONJUNCTION WITH SALE OF A CROSSFIELD PRODUCT. THIS WARRANTY SHALL NOT APPLY TO ANY OF CROSSFIELD’S PRODUCTS, WHICH HAVE BEEN SUBJECT TO ADULTERATION, ALTERATION ABUSE OR MISUSE. CROSSFIELD PRODUCTS CORP. MAKES NO WARRANTY WHATSOVER IN RESPECT TO ACCESSORIES, PARTS OR MATERIAL NOT SUPPLIED BY CROSSFIELD PRODUCTS CORP, WHICH ARE USED IN CONJUNECTION WITH ITS PRODUCTS. THE TERM “ORIGINAL PURCHASER” IN THIS WARRANTY MEANS THAT PERSON, CORPORATION OR ENTITY TO WHOM CROSSFIELD PRODUCTS CORP. SOLD ITS PRODUCTS. ANY ACTION TO ENFORCE ANY WARRANTY OR FOR BREACH OF CONTRACT OR ARISING OUT OF ANY CLAIM AGAINST CROSSFIELD PRODUCTS CORP. SHALL BE COMMENCED AND MAINTAINED ONLY IN A COURT OF COMPETENT JURISDICTION IN THE CONTINENTAL UNITED STATES OF AMERICA. THE PURCHASER ACCEPTS THESE TERMS AND CONDITIONS, AND HEREBY EXPRESSLY WAIVES ANY CLAIM TO ADDITIONAL DAMAGES
