  • Seal Boss 13-175S Steel Packer 1/2" x 6" with 6mm Buttonhead

Mfr:SealBoss

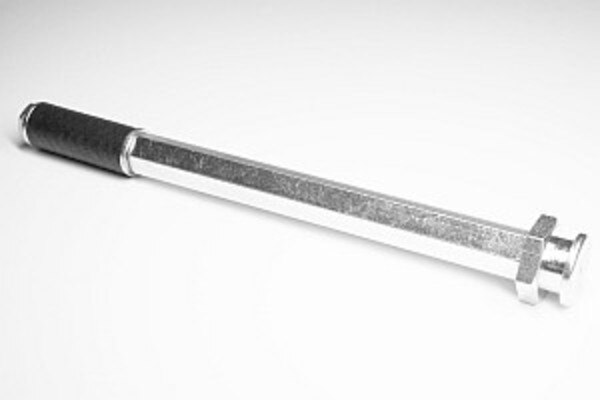

Seal Boss 13-175S Steel Packer 1/2" x 6" with 6mm Buttonhead

(0)(0)
Item #: WPBBUT13-175NZ.EA*NA

Mfr. Part #: BP13-175S/BBUTTON6

Q&A(0)

The 1/2 inch diameter SealBoss 13-175S Type Injector is extremely sturdy and versatile and can be used with a zerk fitting or button head. This is a bestselling 1/2″ steel type very long mechanical injection packer recommended for professional crack injection contractors and...

View More Details

On Back Order

Available: 0

Case Quantity: 50

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

About This Product

Details

The 1/2 inch diameter SealBoss 13-175S Type Injector is extremely sturdy and versatile and can be used with a zerk fitting or button head. This is a bestselling 1/2″ steel type very long mechanical injection packer recommended for professional crack injection contractors and for use with all of our injection resin grouts. Extra long for deteriorated concrete substrates and high injection pressures.

  • Buttonhead version of standard grout injection packer for most secure and stay in place connection and reduced leakage at coupler.
  • Anti return valve in buttonhead permits port-port travel technique by removing the fitting.
  • Optional zerk fitting available.
  • Suitable for PU, EP, Polyacrylate, and Silicate grouts.
  • Bestseller – a SealBoss Standard

Mechanical injection packers and injection ports are the gateway to successful injection. There are two primary categories of packers available. Insertable mechanical packers and surface mounted ports. SealBoss mechanical packers for grouting are made from steel, brass, aluminum, zinc, various metal alloys and plastic. There are important differences in design and functionality for a variety of products, substrates and objectives. Contractor preferences and comfort levels are also a deciding factor.

Mechanical packers come with zerk fittings and button heads (slide fittings). The zerk type is more commonly used and is less costly. It easily connects and disconnects and works nicely with medium to high injection pressures. The button head type can be of advantage in high volume applications and offers a superior connection which is helpful for single operator injection or large applications. "Injection pressure" are the keywords. To determine a quality packer, it must withstand high injection pressures without leaking and moving out of its drill hole.

SealBoss offers many heavy-duty steel crack injection packer variations. Steel offers the most strength and good resistance to oxidizing components found in acrylate/acrylic gels. SealBoss offers a wide variety of steel packers to suit all injection needs. Most packers are equipped with a rubber sleeve, some have a larger washer on the top of the packer to assist in the installation.

Documents

13-175S Button Head Documents
