FyreFlange Firestop Angles consist of galvanized steel retaining angles with a layer of bonded intumescent material designed to be installed around the perimeter of non-dampered square or rectangular steel ducts. Powder coated red for easy inspection and identification; Fyre...
View More Details
Tech Data Sheet
Safety Data SheetAbout This Product
Details

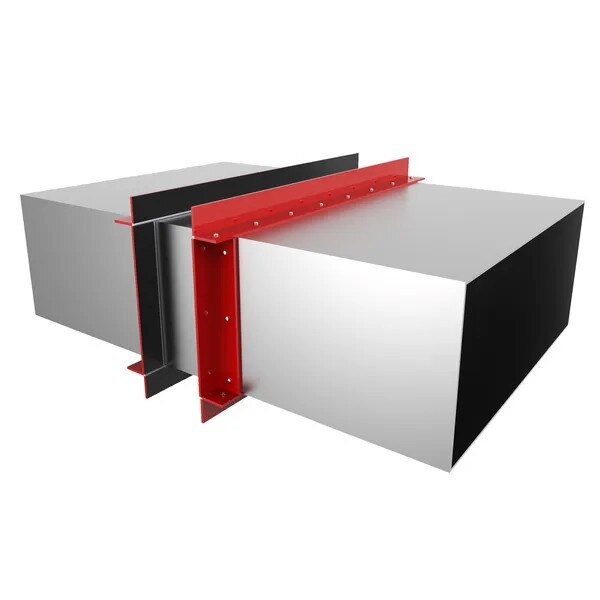

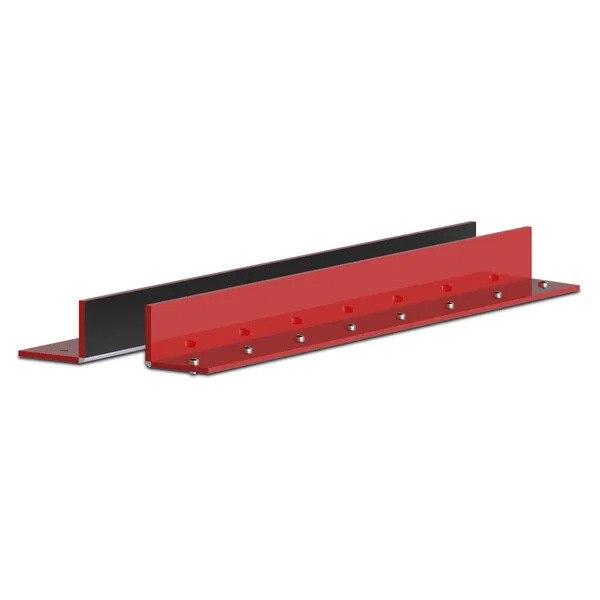

FyreFlange Firestop Angles consist of galvanized steel retaining angles with a layer of bonded intumescent material designed to be installed around the perimeter of non-dampered square or rectangular steel ducts. Powder coated red for easy inspection and identification; FyreFlange Firestop Angles meet the exacting criteria of ASTM E814 (UL1479) and CAN/ULC S115.
Unlike traditional duct firestopping methods utilizing backer or packing materials, sealants, and angles installed and inspected in stages, FyreFlange Firestop Angle can be installed as the duct is installed and inspected just once after the installation is complete. FyreFlange is available as a pre-firestopped angle or as intumescent gasketing for field fabrication with 2 in (51 mm) by 2 in (51 mm) min 20 GA (or heavier) steel angles.
- Single stage installation
- Economical—saves labor
- No additional firestop or backing material required
- Powder coated red for easy identification and inspection
- Eliminates the need for sealants and forming materials
- Easily installs around bare and insulated rectangular ductwork
Applications
- Duct
FyreFlange Firestop Angles are engineered for use with steel ducts up to 92 in (234 cm) by 96 in (244 cm) installed through barriers rated up to and including 2 hours tested designs include options for non-insulated duct as well as ducts insulated with up to 2 in (51 mm) thick 3/4 pcf (12 kg/m cu) glass fiber duct wrap.
Specifications
The fire-rated retaining angles shall consist of powder coated galvanized steel angles with a bonded intumescent gasket and an integral corner clip assembly to join angle sections together. The fire-rated retaining angles shall provide a minimum 15x free expansion and shall contain no water soluble expansion ingredients. Fire-rated retaining angles shall be UL Certified and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.
Test Standards
- ASTM E814 (UL1479)
- CAN/ULC-S115
Specified Divisions
- Division 7, 07 84 13, Penetration Firestopping
- Division 22, 22 00 00, Plumbing
- Division 23, 23 00 00, HVAC
