SpecSeal Series 44+ EZ Path 5 Gang Wall Plate Kit

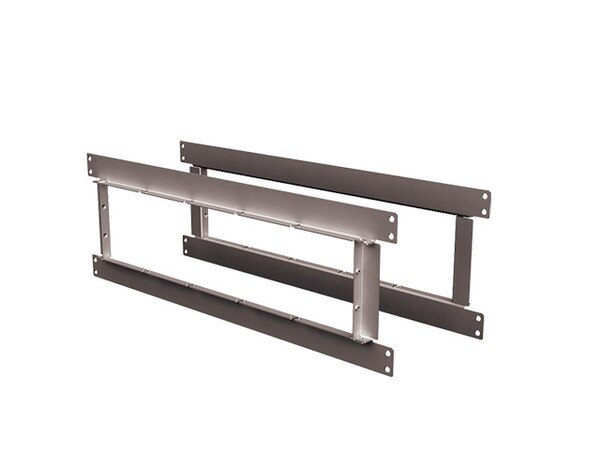

SpecSeal Series 44+ EZ Path 5 Gang Wall Plate Brackets are designed to allow 1 to 5 Series 44+ pathways to be installed in finished walls or as the wall is being built. Plates attach directly to studs, and pathways are installed prior to application of gypsum board. Brackets are suitable for attachment to studs spaced up to 24 in. (610mm).

The EZ Path Series 44+ Fire-Rated Pathway is designed for high cable volume conditions through fire-rated walls and floors while eliminating the burden of ongoing maintenance. The Series 44+ incorporates self-sealing intumescent pads that automatically adjust to the installed cable fill without the need for user manipulation. Under fire exposure, the intumescent pads expand and swell resisting the passage of smoke and flame.
