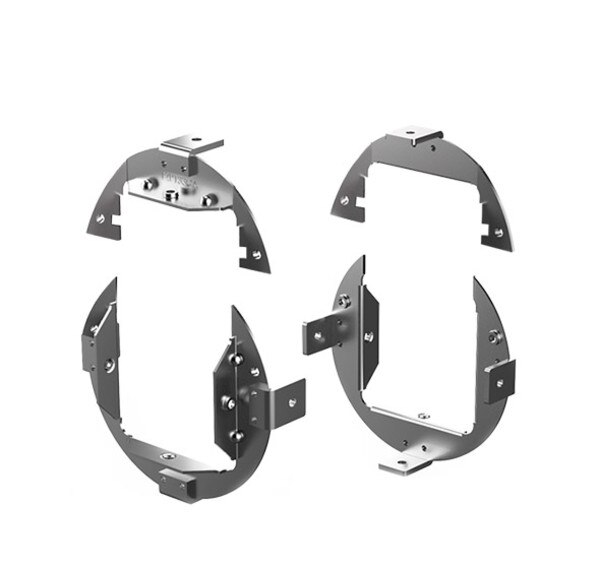

SpecSeal Series 33 EZ Path Conduit Attachment Wall Plate

The SpecSeal Series 33 EZ Path Conduit Attachment Wall Plate is for use with the EZ Path Series 33 Fire-Rated Pathway.

The EZ Path Series 33 Fire-Rated Pathway is a maintenance-free pathway solution for moderate cable volumes through fire-rated walls and floors. The Series 33 incorporates built-in intumescent pads that automatically adjust to cable fills. When exposed to flame and high temperatures, the intumescent pads expand to form a dense insulative char that prevent the passage of smoke and flame.

The Series 33 Pathway is designed for the new or existing cable installations up to 9 in. (229 mm) thick walls for floors. The Series 33 pathway can be ganged for additional capacity. A wide variety of accessories easily adapts 33 Series pathways to a broad range of applications.

• Easy to install
• No firestopping required
• Acoustically tested
• Firestopped at all stages of use
• UL tested - low leakage
• UL Certified for the complete range of its capacity
• Pathways can be ganged for additional capacity
• Permits cable segregation by use, type, vendor
• Match the capacity of a 4” (102 mm) conduit

Applications

• Cables
• Cable Tray

EZ Path Series 33 Fire Rated Pathway is designed for easy installation in floors and walls. Tested and approved cable capacities range from 0 to 100% visual fill. EZ Path Series 33 Fire Rated Pathway when installed with available wall plates is designed for new cable installations. In these installations, the device does not require mechanical attachment to either the wall or the wall framing and may be installed after the wallboard has been installed. EZ Path’s split body design also allows the device to be easily disassembled and installed around previously installed cables in existing construction.

Specifications

All data, video, and communications cable bundles shall utilize an enclosed fire-rated pathway device wherever said cables penetrate rated walls. The fire-rated pathway shall contain a built-in fire sealing system sufficient to maintain the hourly fire rating of the barrier being penetrated. The self-contained sealing system shall automatically adjust to the installed cable loading and shall permit cables to be installed, removed, or retrofitted without the need to remove or reinstall firestop materials. The pathway shall be UL Certified and/or FM Systems Approved and tested to the requirements of ASTM E814 (UL1479) and CAN/ULC-S115.

Test Standards

• ASTM E814 (UL1479)
• CAN/ULC-S115

Specified Divisions

• Division 7, 07 84 13, Penetration Firestopping
• Division 26, 26 00 00, Electrical
• Division 27, 27 00 00, Communications
