Mfr:Sika Corp

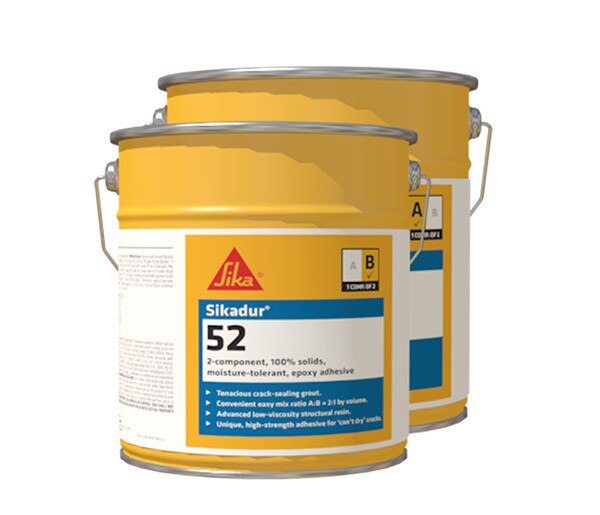

Sikadur 52 LV Injection Resin per 3 Gallon Unit
Mfr. Part #: 91258
Roll Over To Zoom
Sikadur 52 is a 2-component, 100% solids, moisture-tolerant, epoxy adhesive. It is a low-viscosity, high-strength adhesive formulated specifically for grouting both dry and damp cracks. It conforms to the current ASTM C-881, Types I and II, Grade-1, Class C and AASHTO M-235 ...
View More DetailsAbout This Product
Details
Sikadur 52 is a 2-component, 100% solids, moisture-tolerant, epoxy adhesive. It is a low-viscosity, high-strength adhesive formulated specifically for grouting both dry and damp cracks. It conforms to the current ASTM C-881, Types I and II, Grade-1, Class C and AASHTO M-235 specifications.
- Tenacious crack-sealing grout
- Convenient easy mix ratio A:B = 2:1 by volume
- Advanced low-viscosity structural resin
- Unique, high-strength adhesive for ‘can’t dry’ cracks
Usage
- Use neat for gravity feed or pressure injection of cracks in structural concrete, masonry, wood, etc
- Seal interior slabs and exterior above grade slabs from water, chlorides and mild chemical attack and to improve wearability
Mixing
Proportion 1 part Component ‘B’ to 2 parts Component ‘A’ by volume into a clean pail. Mix thoroughly for 3 minutes with Sika Paddle on low-speed (400-600 rpm) drill until uniformly blended. Mix only that quantity that can be used within its pot life.
Compressive Strength
40°F* (4°C)* | 73°F* (23°C)* | 90°F* (32°C)* | |
8 hours | - | - | 90 (0.62) |
16 hours | - | 3,000 (20.6) | 7,300 (50.3) |
1 day | - | 4,500 (31.0) | 8,400 (57.9) |
3 days | 1,800 (12.4) | 10,000 (68.9) | 8,700 (60.0) |
7 days | 6,100 (42.0) | 11,300 (77.9) | 10,400 (71.7) |
14 days | 6,800 (46.8) | 11,700 (80.6) | 10,400 (71.7) |
28 days | 8,400 (57.9) | 12,000 (82.7) | 10,400 (71.7) |
