Mfr:Sika Corp

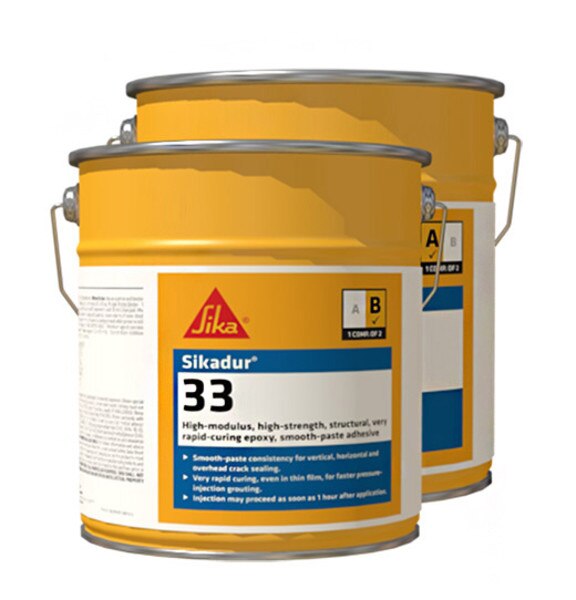

Sikadur 33 Rapid-Set Epoxy Gel per 2 gallon Unit
Mfr. Part #: 105311
Roll Over To Zoom
Sikadur 33 is a 2-component, 100 % solids, moisture-tolerant, high-modulus, high-strength, structural, smooth-paste epoxy adhesive. It conforms to the current ASTM C-881, Types I and II, Grade-3, Class B/C* and AASHTO M-235 specifications. *except for gel time. New smo...
View More Details
Tech Data Sheet
Safety Data SheetAbout This Product
Details
Sikadur 33 is a 2-component, 100 % solids, moisture-tolerant, high-modulus, high-strength, structural, smooth-paste epoxy adhesive. It conforms to the current ASTM C-881, Types I and II, Grade-3, Class B/C* and AASHTO M-235 specifications. *except for gel time.
- New smooth-paste consistency for vertical, horizontal and overhead crack sealing
- Very rapid curing, even in thin film, for faster pressure-injection grouting
- Injection may proceed as soon as 1 hour after application
- Concrete gray
Usage
- Use to seal cracks and to secure injection ports in structural concrete and wood trusses prior to pressure-injection grouting
Mixing
Pre-mix each component. Proportion equal parts by volume of Component ‘B’ and Component ‘A’ into a clean pail. Mix thoroughly for 3 minutes with Sika paddle on low-speed (400–600 rpm) drill until uniform in color. Mix only that quantity that can used within its pot life.
Compressive Strength
| 40 °F (4 °C) | 73 °F (23 °C) | 90 °F (32 °C) | |
| 1 hour | 30 psi (0.20 MPa) | 5,600 psi (38.6 MPa) | 4,600 psi (31.7 MPa) |
| 2 hours | 1,800 psi (12.4 MPa) | 6,700 psi (46.2 MPa) | 5,600 psi (38.6 MPa) |
| 4 hours | 3,500 psi (24.1 MPa) | 7,800 psi (53.7 MPa) | 5,700 psi (39.3 MPa) |
| 8 hours | 6,300 psi (43.4 MPa) | 8,200 psi (56.5 MPa) | 6,600 psi (45.5 MPa) |
| 16 hours | 6,900 psi (47.5 MPa) | 8,500 psi (58.6 MPa) | 7,100 psi (48.9 MPa) |
| 1 day | 7,400 psi (51 MPa) | 8,600 psi (59.3 MPa) | 7,300 psi (50.3 MPa) |
| 3 days | 7,900 psi (54.4 MPa) | 9,000 psi (62 MPa) | 7,600 psi (52.4 MPa) |
| 7 days | 8,300 psi (57.2 MPa) | 9,200 psi (63.4 MPa) | 7,800 psi (53.7 MPa) |
| 14 days | 8,500 psi (58.6 MPa) | 9,200 psi (63.4 MPa) | 8,100 psi (55.8 MPa) |
| 28 days | 8,600 psi (59.3 MPa) | 9,400 psi (64.8 MPa) | 8,300 psi (57.2 MPa) |
| Material cured and tested at the temperatures indicated and 50 % R.H. | |||
