Spetec Injection Tube System Kit

The Spetec ITS Kit is an injection tube system that allows injection of cold and construction joints via a pre-installed injection canal. It is placed in the joint during construction. It acts as a canal for the injection resin which will, when in contact with water, expand and seal the joint permanently. The Spetec ITS can be injected with Spetec PUR 500, Spetec PUR F400 or Spetec AG200.

• Monolithic waterstop seal.
• Effective in applications with honeycomb concrete.
• Will not fold or crush with concrete weight.
• Can be injected under flowing water.
• Chemical resistance once injected.
• With NSF approved resin, can be installed in a potable water
• application.
• Easy to install, no special tools required.
• Complete system, delivered with all necessary accessories.
• The hose can be adjusted to the correct length on site.
• Due to the metal spiral core the hose keeps its inner diameter when bended.
• Low pressure injection possible.
• Can be injected preventatively or when leakages actually occur.
• After injection the joint is permanently sealed.
• Injection is done continuously over the porous surface of the tube, not via points or slits resulting in a more even distribu¬tion of the resin in the joint.
• No leak, no injection necessary

Applications

• SPETEC ITS is installed in construction joints in concrete, pipe penetrations and voids between secant piles walls and slabs, and so on.
• SPETEC ITS can be combined with other preventative waterproofing systems like swelling bars and PVC water stops.
• The joint can be injected with the appropriate SPETEC Injection resin preventatively after the concrete has fully cured or in case a leak appears

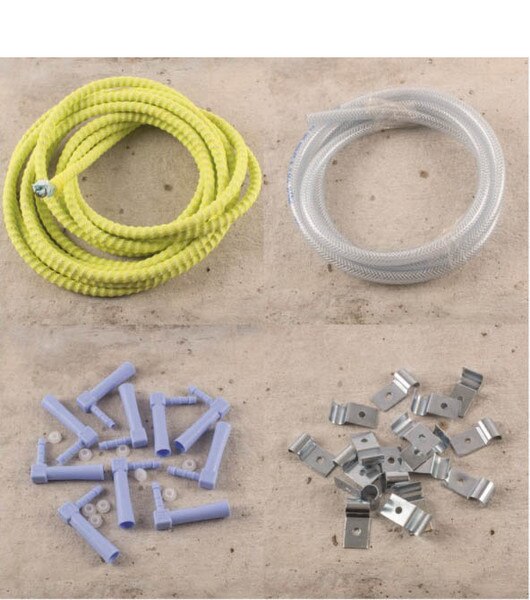

Kit Includes

• 100 lf of injection tube
• 20 lf of 3/8″ reinforced PVC tube
• 1/4″ clips (100)
• 12 3/8″ elbow hose barbs
