Mfr:Excellent Coatings

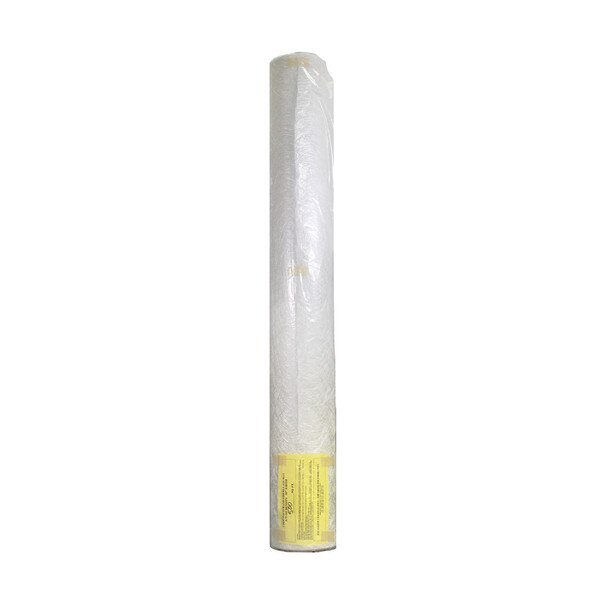

Fiberglass Mat 50" x 120' - 500 SF Roll

(0)(0)
Item #: EXFGL500.RL*NA

Mfr. Part #: ACC-FG-500

Q&A(0)

Roll Over To Zoom

$199.25 $208.14 Save $8.89 (4%)

Excel-Coat Reinforcing Fabric is a composite Fiber Glass Filament Reinforcing Mat. It is a combination of chopped glass filament bundled with polyester binder. It is used to reinforce Excel-Coat acrylic deck coatings and also ExcelCoat epoxy resin systems in those areas in n...

View More Details

In Stock

Available: 40

Location

Available

Anaheim, CA

6

Burbank, CA

7

Denver, CO

0

Ontario, CA

2

Salt Lake City, UT

0

San Diego, CA

19

San Marcos, CA

6

(*) Minimum Quantity: 1

Better Together

Buy all 4

Subtotal $285.63

About This Product

Details

Excel-Coat Reinforcing Fabric is a composite Fiber Glass Filament Reinforcing Mat. It is a combination of chopped glass filament bundled with polyester binder. It is used to reinforce Excel-Coat acrylic deck coatings and also ExcelCoat epoxy resin systems in those areas in need of increased impact resistance. While the chemical and thermal properties of Excel-Coat Reinforcing Fabric are essentially those of glass, the product’s hydraulic overlapping of fibers endows it with an extraordinary combination of unique physical and performance properties when encapsulated in Excel-Coat acrylic membranes or epoxy coatings

In acrylic deck coating and epoxy laminating applications, Excel-Coat Reinforcing Fabric is the preferred reinforcement because the non-woven interstitial openings allows the impregnating acrylic membrane or epoxy resin a better chance to key through the fabric to form the important bond. When properly impregnated with the Excellent Coatings Acrylic or Epoxy Membranes there is formed a nonhydroscopic, lightweight, high tear strength, multi-directional fabric reinforced coating system which has dramatically improved resistance to abrasion and impact.

The distinctive characteristics of Excel-Coat Reinforcing Fabric when properly encapsulated with Excel-Coat #1 Acrylic Membrane are higher tensile strength combined with increased tear strength and increased dimensional stability (i.e. better distribution of localized stress).

Pedestrian Traffic Membrane System

Excel-Coat is specifically designed to provide a waterproof wearing surface for exterior and interior pedestrian traffic areas, such as walking decks, balconies, patios, stairways and pool areas. Concrete is a suitable substrate that provides excellent adhesion. Excel-Coat provides durable protection with ultraviolet light stability and allows easy maintenance of the membrane. The Pedestrian Traffic Membrane System consists of:

Excel-Coat Fire System

The Excel-Coat Fire System is specifically designed to provide a waterproof wearing surface for exterior and interior pedestrian traffic areas where waterproofing and a "Class A", one hour fire rating are essential. It is ideal for walking decks, balconies and stairways. The Excel-Coat Fire System provides durable protection with ultraviolet light stability and allows for easy maintenance. This system is also excellent for retrofit work. The Excel-Coat Fire System consists of:

Features & Benefits

  • Higher tensile strength and toughness
  • Higher impact resistance
  • Higher tear strength – Excellent stress distribution
  • Lightweight. – ¾ oz /sq.ft added weight
  • Improved resistance to cold cracking
  • Fabric properties are not affected by water
  • Dimensionally stable during changes in humidity
  • Improved resistance to splitting or cracking from thermal shock, low temperatures, freeze/thaw cycles, and rough handling
  • Outstanding resistance to rot and water damage

Applications

  • Excel-Coat Reinforcing Fabric is a universal fabric that can be used with Excel-Coat #1 Acrylic Membrane as well as the Excellent Coatings manufactured epoxy resin systems. Excel-Coat Reinforcing Fabric is an excellent repair and reinforcement fabric for both new and remedial construction in decking, roofing, and waterproofing applications. Other applications include: foundations, slabs, tunnels, subways, pipeline joint wrap, parapet wall treatment, plaza decks, roofing insulation, and vertical waterproofing repair operations. Excel-Coat #1 Acrylic Membrane was developed to accommodate embedding with Excel-Coat Reinforcing Fabric.

    Packaging

    Limitations

    • Not for areas intended for vehicular traffic.
    • Do not apply in constantly submerged conditions such as reflecting ponds or tank linings.
    • Do not apply directly to plywood. For plywood applications refer to the Excel-Coat Fire System Application Guide.
    • On-grade applications require appropriate surface preparation and prime coat.

    Documents

    Excel-Coat Fiberglass Reinforcing Fabric Documents

    Specifications

    Excel-Coat Fiberglass Reinforcing Fabric Specifications
