Mfr:Euclid Chemical

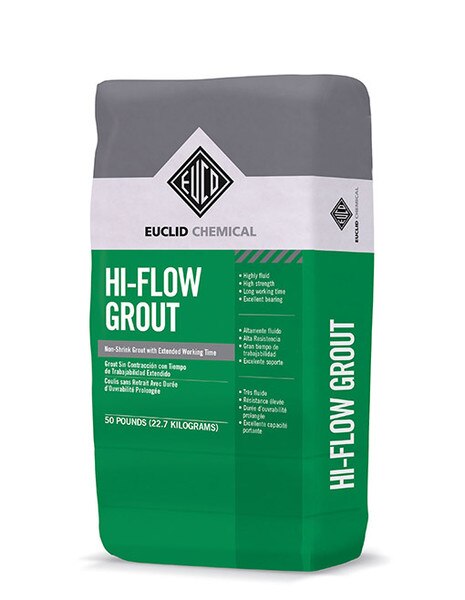

Euclid Hi-Flow Grout 50 Pound Bag

Name: Euclid Hi-Flow Grout 50 Pound Bag
SKU: EUHFGROUT.50B*NA
Price: 59.65 USD
Availability: BackOrder

(0)(0)

Item #: EUHFGROUT.50B*NA

Mfr. Part #: 088H 50

Q&A(0)

Roll Over To Zoom

$59.65

HI-FLOW GROUT is specially designed for use where high tolerance, high strength and high fluidity are required. It is formulated as a natural aggregate system with a shrinkage-compensating binder and is highly flowable without sacrificing strength or performance capabilities...

View More Details

Tech Data SheetSafety Data Sheet

About This Product

Details

HI-FLOW GROUT is specially designed for use where high tolerance, high strength and high fluidity are required. It is formulated as a natural aggregate system with a shrinkage-compensating binder and is highly flowable without sacrificing strength or performance capabilities. HI-FLOW GROUT is formulated to provide consistent and exacting performance in critical grouting operations.

Features & Benefits

Highly fluid for ease in placement
High strength for maximum load bearing
Non-shrink with minimum positive expansion for high-tolerance performance
Non-bleeding and non-segregating at a fluid consistency
Does not contain any chlorides or additives which may contribute to corrosion of base structure

Total shrinkage compensation provides a maximum bearing surface for the greatest overall support
Rapid strength gain to minimize turnaround time for equipment re-grouts
Excellent working time at high ambient temperatures

Applications

Heavy duty grouting of machinery and equipment
Structural columns
Crane rails
Bridge seats
Bearing plates
Anchorages

Packaging

Euclid Hi-Flow Grout 50 Pound Bag (this item)

Testing Standards

CRD-C 621, Corps of Engineers Specification for Non-Shrink Grout
ASTM C1107, “Standard Specification for Packaged Dry, Hydraulic-Cement Grout (Non-Shrink)”
Shows positive expansion when tested in accordance with ASTM Specification C1090, “Standard Test Method for Measuring Changes in Height of Cylindrical Specimens from Hydraulic-Cement Grout”
Canadian MTQ
NSF/ANSI/CAN Standard 61

Limitations

Store materials in a dry place.
Do not add sufficient water to promote bleeding of the grout.
Use only potable water for mixing, and do not add admixtures or fluidifiers.
Do not use this product at a flow cone rate of less than 20 seconds if checking flow rate on the job site (see CRD-C 611 or ASTM C939 for flow cone method).
Rate of strength gain is significantly affected at temperature extremes.
Do not use material at temperatures that may cause premature freezing.
Keep the grout from freezing until a minimum strength of 4000 psi (28 MPa) is reached.

When necessary, follow the recommendations in ACI 305R “Guide to Hot Weather Concreting” or ACI 306R “Guide to Cold Weather Concreting”.
Shoulder cracking may occur on wide shoulders, improperly cured shoulders, or at stress points such as shimpacks, bolts or plate stiffeners. These cracks are of no structural significance.
Do not use as a topping.
Proper curing is required.
In all cases, consult the Safety Data Sheet before use

Documents

Hi-Flow Grout Documents

Specifications

HI-FLOW GROUT Specifications
