  • Epro E.BASE 316 12' x 150' Roll

Mfr:Epro

Epro E.BASE 316 12' x 150' Roll

(0)(0)
Item #: EPEBASE316.RL*NA

Mfr. Part #: e.base 316/Ecoshield H-16 ( 144" x 150')

Q&A(0)

e.base 316 is a superior base course option for E.Series pre-applied underslab and pre-applied shoring assemblies for buildings that require the highest level of protection. Using EPRO’s redundant field installed composite design concept, e.base 316 augments E.Series system ...

View More Details

In Stock

Available: 3

Case Quantity: 1

Location

Available

Anaheim, CA

0

Burbank, CA

3

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

e.base 316 is a superior base course option for E.Series pre-applied underslab and pre-applied shoring assemblies for buildings that require the highest level of protection. Using EPRO’s redundant field installed composite design concept, e.base 316 augments E.Series system assemblies by adding a thermoplastic membrane with heat welded seams to increase chemical resistance, waterproofing capabilities, and overall system robustness. Used as a key component in E.Protect+ assemblies, e.base 316 is also used as a redundant layer in horizontal podium deck applications.

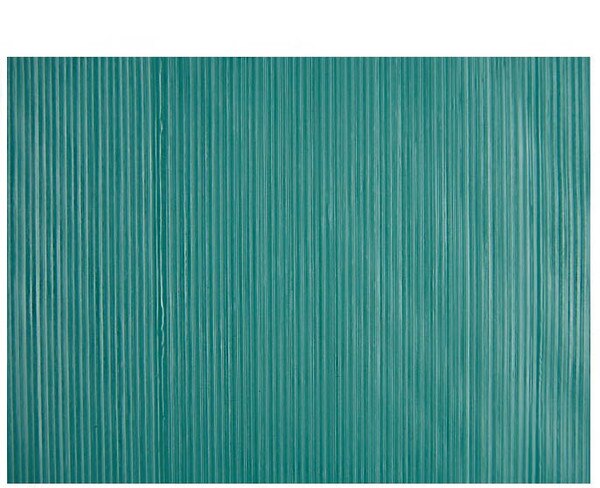

e.base 316 is a 16 mil geomembrane comprised of high density polyethylene (HDPE). While e.base 316 is always installed as a component of EPRO’s E.Series assemblies, it alone exceeds all Class A, B, and C vapor barrier requirements.


Features & Benefits

  • Excellent chemical resistance
  • Large roll size drastically minimizes seams
  • High puncture resistance protects waterproofing from a wide variety of substrates
  • Impermeable to water when installed as part of the composite system

    Applications

    • Rolls should be inspected for cosmetic damage prior to application. Calibrate hot air welder settings to create a continuous uniform weld that is free from deficiencies.

      Packaging

      • 12’ x 150’ unfolded rolls, 137 lbs. (this item)

      Limitations

      • Should not be used as the sole means of building protection
      • Additional weight should be used during application in windy conditions
      • Excessive moisture must be removed prior to welding seams

        Documents

        E.BASE 316 Documents

        Specifications

        E.BASE 316 Specifications
