Mfr:Epro

Epro E.DRAIN E 6' x 65.6' Roll

(0)(0)
Item #: EPDRAINE-6.RL*NA

Mfr. Part #: e.drain 6'

$408.13

e.drain has been specifically designed to meet the drainage and protection requirements of below grade waterproofing applications. E.Series utilizes e.drain in applications for over excavated below grade foundation walls to effectively eliminate the buildup of nuisance water...

View More Details

On Back Order

Available: 0

Case Quantity: 1

Location

Available

San Diego

0

Anaheim

0

Denver

0

Salt Lake

0

Ontario

0

San Marcos

0

(*) Minimum Quantity: 1

About This Product

Details

e.drain has been specifically designed to meet the drainage and protection requirements of below grade waterproofing applications. E.Series utilizes e.drain in applications for over excavated below grade foundation walls to effectively eliminate the buildup of nuisance water, provide another layer of waterproofing redundancy, and provide protection during backfill. e.drain is also applied to shoring as a base course for e.spray. When concrete is applied, the e.drain and e.spray become integrated into the below grade foundation walls, forming a uniform composite system that directs water away and provides a seamless waterproofing membrane.

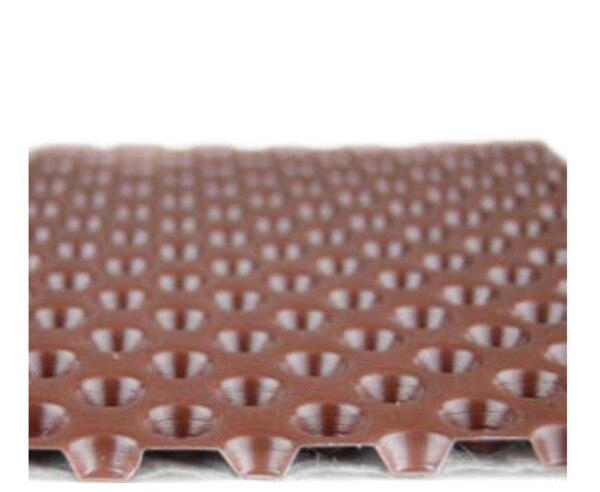

e.drain features a lightweight three-dimensional, highly flexible high density polyethylene (HDPE) core and a polypropylene geotextile filter fabric. The filter fabric is bonded to the dimples of the HDPE core.

  • High density polyethylene core provides a high level of chemical resistance and performs as a waterproofing barrier
  • Unique shallow dimple design allows for a uniform application of e.spray
  • For shoring applications, e.drain allows waterproofing to become fully integrated into and bonded to the building foundation wall
  • Variable widths (6’ and 8’) provide minimal overlapping of seams and increase installation efficiency
  • Suitable for both cast in place concrete and shotcrete

Application

Drainage panels may run horizontally or vertically and must be secured to the wall using manufacturer’s approved fasteners and subsequent detailing methods.

Coverage

  • 6’ and 8’ wide rolls cover 394 and 527 square feet, respectively, not including overlaps or waste

Packaging

  • Roll: 6’ x 65.7’, 60 lbs. or 8’ x 65.7’, 73 lbs.

Documents

e.drain Documents

Specifications

e.drain Specifications
