Emseal WFR2 - 1-1/4" - per LF

Emseal WFR2 - 1-1/4" - per LFy

Fire Rated Wall Expansion Joint. 2-Hour Fire Rated, Watertight, Sound Dampening, Primary Seal for Interior and Exterior Wall Expansion Joints.

Fire rated wall expansion joint, Emshield WFR2 (Wall, Fire-Rated 2-Hours) is a watertight, fire-rated, dual-sided primary seal for repair, retrofit, and new installation in structural expansion joints and construction joints in vertical plane wall and head-of-wall applications.

Emshield WFR2 is a 2-hour UL-certified fire barrier and preformed alternate to fire caulk and fire stop materials. (For 3-hour fire rating see Emshield WFR3).

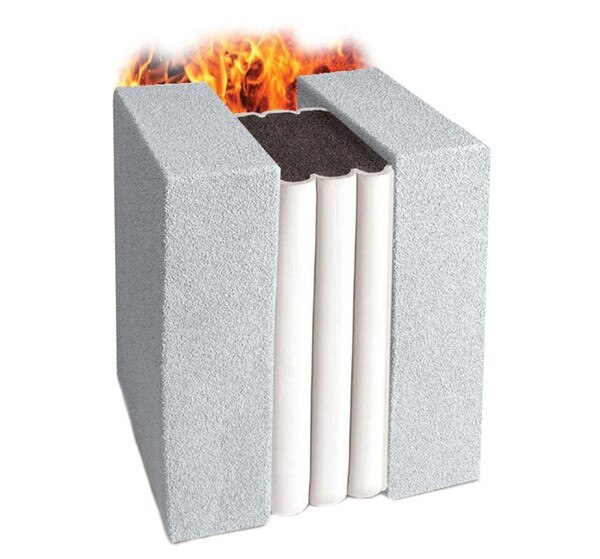

Emshield WFR2 features dual-sided silicone sealing surfaces adhered to a fire-retardant impregnated foam backing. Both sides of the expansion joint are waterproof and fire-rated. Emshield WFR2 eliminates the need for fire blankets, mineral wools, liquid sealants, fire caulk, cover plates, or other fire stop materials. It can be used alone or under any other expansion joint cover, plate or filler where depth of substrate allows–with Emshield WFR2 one install does it all.

Non-invasive anchoring vastly simplifies installation and project sequencing. Emshield WFR2 fire rated wall expansion joint is tested and certified by Underwriters Laboratories (UL), to the rigors of UL 2079 for wall and head-of-wall expansion joints as well as to California Department of Public Health CDPH/EHLB/Standard Method Version 1.2, 2017 for low-emitting materials.

Where UL tested listings do not meet your specific project conditions ask EMSEAL for an engineered judgment.

Features

• 2-hour UL2079 Fire-Rated, UL & ULC Listed fire barrier expansion joint
• Watertight
• Airtight
• Insulates
• Non-invasive anchoring
• Sound attenuating STC 62; OITC 52
• Low-Emitting Material per CDPH/EHLB V1.2, 2017
• ABAA Compliant
• Resists hurricane force wind & water
• Low-Tension silicone and foam hybrid sealant
• Rapid installation–new or retrofit
• Aesthetically and practically versatile
• Easily handles changes in plane and direction
• One product, One Install Does It All–fire-rated, watertight, airtight, 100% movement, quiet, non-invasive anchoring, UL 2079 Certified

Uses

U.S. PATENTS

• 9,670,666
• 9,644,368
• 9,637,915
• 9,528,262
• 9,068,297
• 8,739,495 C1
• Patent Pending

Movement

• Total 100% (+50% and -50%) of nominal supplied size.
