Titan Foam Soft - 1-1/2'' x 6'' per Lineal Foot
Mfr. Part #: IEAE112
Roll Over To Zoom

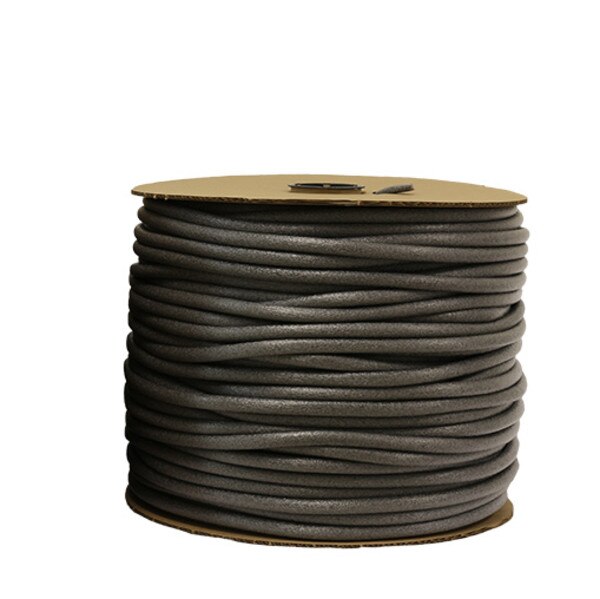

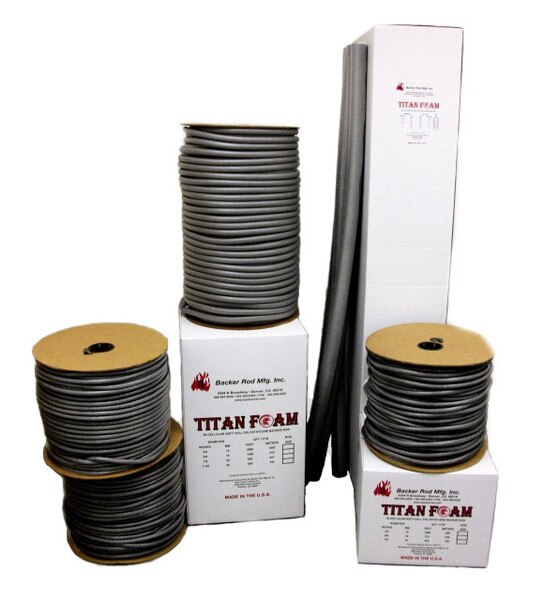

Bi-Cellular Soft Cell Polyethylene Titan Foam is a soft cell grey non-gassing pliable backer rod. It is has an impervious outer skin, used as a backing for elastomeric and other cold applied sealants. Titan Foam controls the depth of the applied sealants and ensures cross-se...View More Details
About This Product
Bi-Cellular Soft Cell Polyethylene
Titan Foam is a soft cell grey non-gassing pliable backer rod. It is has an impervious outer skin, used as a backing for elastomeric and other cold applied sealants.
Titan Foam controls the depth of the applied sealants and ensures cross-sectional hour-glass configuration.
Titan Foam is suited for specialty applications such as irregular and varying joint widths where standard closed cell backer rods are not appropriate. Common applications include but are not limited to: concrete expansion and contraction joints, curtain walls, parking decks, bridge and highway construction, pavement maintenance, window glazing and log home chinking.
Composition & Material:
Titan Foam is an extruded polyethylene bi-cellular foam product which when punctured per ASTM C 1253 does not exhibit any out-gassing. Titan Foam has an impervious outer skin that resists moisture. It is easily compressible, flexible, and pliable for easy installation. It is furnished in a wide variety of sizes listed under packaging information.
Prior to installing Titan Foam, all joints must be free from all contaminants such as curing compounds and form-release agents, as well as loose and foreign materials. Install Titan Foam under 25% minimum, 50% maximum compression to the depth recommended by the sealant manufacturer. Before applying sealant, all joints must be clean and dry.
Titan Foam is an inert material and therefore is compatible with virtually all known cold applied sealants including silicones, polyurethanes, acrylics, polysulfide, and butyl.
- Density: 1.8 - 2.5 lb/ft3 ASTM D 1622
- Out-gassing: NONE ASTM C 1253
- Compression Recovery: 95% min ASTM D 5249
- Tensile Strength PSI: 39-50 PSI ASTM D 1623
- Temperature Range: -90 degrees F to 210 degrees F ASTM D 5249
- Water Absorption: less than .03 g/cc ASTM C 1016 - Proc. B
Do not use with hot applied sealants. Do not puncture, over compress or stretch TITAN FOAM™ during installation.
