Mfr:3M

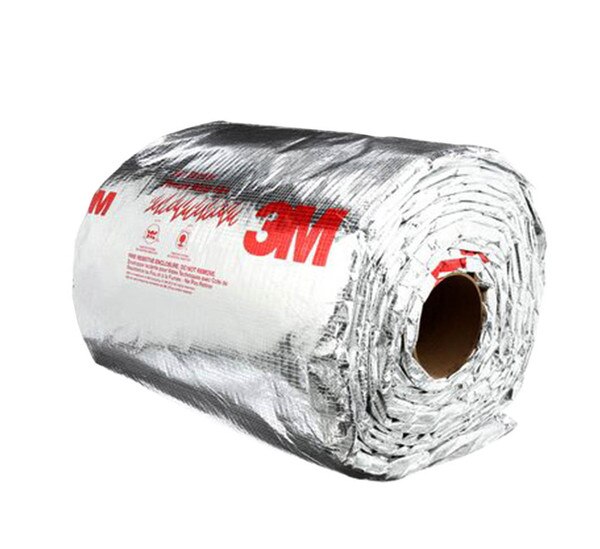

3M Fire Barrier Plenum Wrap 5A+ - 1/2" x 48" x 25' per Roll

(0)(0)
Item #: 3M18805-3.RL*NA

Mfr. Part #: 7000059415

Q&A(0)

3M Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap that consists of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. 3M designed this plenum wrap as a strong, lightweight and flexible material for easy installation. This product is engineered to cr...

View More Details

On Back Order

Available: 0

Case Quantity: 2

Location

Available

Anaheim, CA

0

Burbank, CA

0

Denver, CO

0

Ontario, CA

0

Salt Lake City, UT

0

San Diego, CA

0

San Marcos, CA

0

(*) Minimum Quantity: 1

About This Product

Details

3M Fire Barrier Plenum Wrap 5A+ is a fire-resistant wrap that consists of an inorganic fiber blanket encapsulated with a scrim-reinforced foil. 3M designed this plenum wrap as a strong, lightweight and flexible material for easy installation. This product is engineered to create a fire-resistive enclosure that can reduce flame and smoke spread ratings to acceptable levels in return air plenums.

  • Strong, lightweight and flexible material for easy installation
  • Tested to ASTM E 84, NFPA 262 (UL 910) and UL 1887
  • Features a foil encapsulated scrim
  • Designed as a non-asbestos wrap
  • Intended for use on cables, PVC, CPVC, PB, PE, PP, PVDF and pipes in return air plenums

Easy Installation for Tough Fire Protection

Wrap and protect plastic pipes in plenum areas more easily with our 3M Fire Barrier Plenum Wrap 5A+. Consisting of an inorganic fiber blanket encapsulated with a scrim-reinforced foil, this product is used to create a fire-resistive enclosure that can reduce the flame and smoke spread ratings to acceptable levels in return air plenums. 3M constructed this material to be a non-asbestos wrap with a 6 pcf (96 kg/m3) density. The strong, thin and lightweight product is extremely easy to manipulate and install, particularly around pipes and cabling. 3M Fire Barrier Plenum Wrap 5A+ is tested to UL 910 (NFPA 262), UL 1887, and ASTM E 84.

Applications

  • Single and multiple 1-inch diameter (25.4 mm) and larger plastic pipe and cable bundles
  • PVC, CPVC, PB, PE, PP, PVDF and ABS pipes in return air plenums

Surface Burning Characteristics

Flame
Spread (ft.)
Max.Avg.Flame
Spread
Index
Smoke
Spread
Index
NFPA262
(formerlyUL910)
1.40.0560.010N/AN/A
UL18870.00.00.002N/AN/A
ASTME84 (mod.)N/AN/AN/A05

Documents

3M Fire Barrier Plenum Wrap 5A+ Documents

Specifications

3M Fire Barrier Plenum Wrap 5A+ Specifications
